Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC1100P60 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$65-80/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Standards: |
IEEE802.3at Power Over Ethernet |
Standards: |
IEEE802.3at Power Over Ethernet |

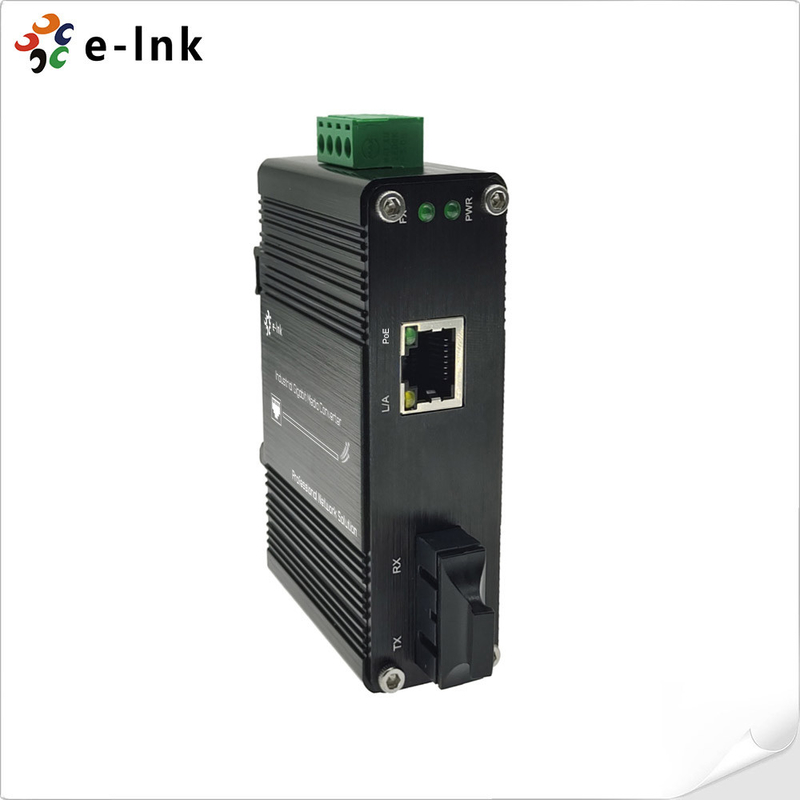

60W POE Fiber Media Converter Mini Industrial 10/100M Ethernet 100M SC Port
Fiber Media Converter Advantages
Specifications
|
Interface |
|
|---|---|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x SC 100Base-FX |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Output Power |
48VDC |
|
Power Consumption: |
65W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
POE: |
PoE Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Order Information
| Model | Description |
| LNK-IMC1100P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P60S-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
