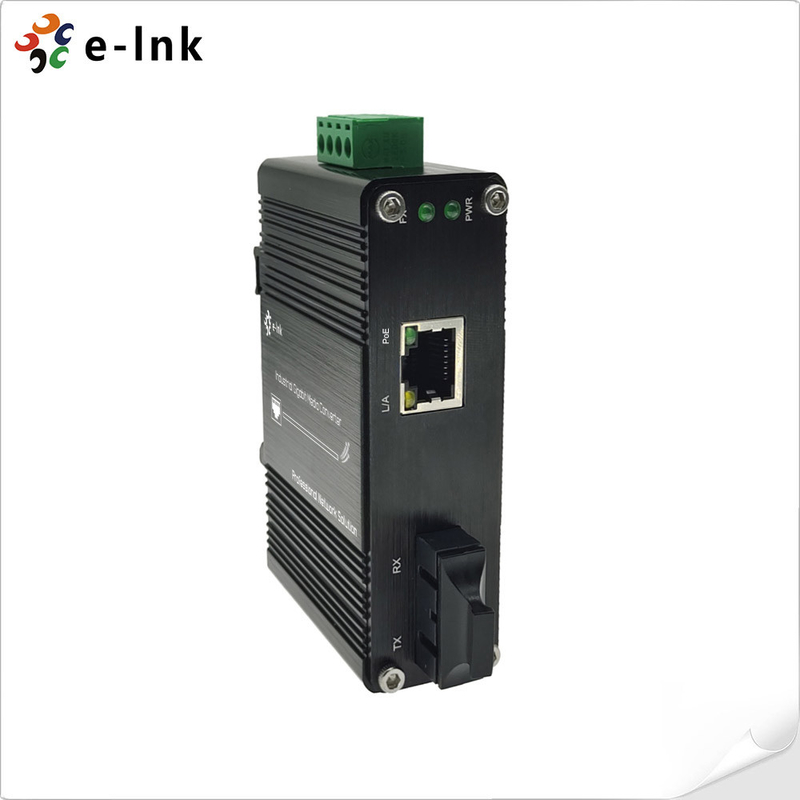

100M Internet Media Converter 60W SC POE Fiber Converter

Name: 100M Internet Media Converter 60W SC POE Fiber Converter
Brand: E-link
SKU: LNK-IMC3011P60 Series
Price: 80 USD
Availability: InStock
Rating: 4.5 (149 reviews)

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO

Model Number: LNK-IMC3011P60 Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$80-95/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    100M Internet Media Converter, 60W Internet Media Converter, SC POE Fiber Converter


Connector:	1x RJ45	Optical Port:	1 X 1000Base-X SC
Input Power:	12~48VDC, 2-pin Terminal Block	Power Consumption:	65W Max.
Output Power:	48VDC	Casing:	Aluminum Case

Connector:	1x RJ45
Optical Port:	1 X 1000Base-X SC
Input Power:	12~48VDC, 2-pin Terminal Block
Power Consumption:	65W Max.
Output Power:	48VDC
Casing:	Aluminum Case

Description

100M Internet Media Converter 60W SC POE Fiber Converter

Fiber Media Converter 60W POE SC Port Industrial Gigabit Ethernet 10/100/1000M

Fiber Media Converter Advantages

1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1-Port 1000Base-X SC
IEEE802.3af/at compliant
Up to 60W of power over 4-pairs
Supports Full/Half-duplex, Auto-negotiation
IEEE 802.3az Energy Efficient Ethernet (EEE)
12~48VDC Terminal Block Power Input
Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Specifications

Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

100M Internet Media Converter 60W SC POE Fiber Converter 0

Order Information

Model	Description
LNK-IMC3011P60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P60S-20	Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
