Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC1100P90 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$75-90/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
PoE Standard: |
IEEE802.3bt Power Over Ethernet |
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
148,800pps (100Mbps) |
Optical: |
1 X SC 100Base-FX |
Power Input: |
48~57VDC, 2-pin Terminal Block |
Power Output: |
48VDC |
PoE Standard: |
IEEE802.3bt Power Over Ethernet |
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
148,800pps (100Mbps) |
Optical: |
1 X SC 100Base-FX |
Power Input: |
48~57VDC, 2-pin Terminal Block |
Power Output: |
48VDC |

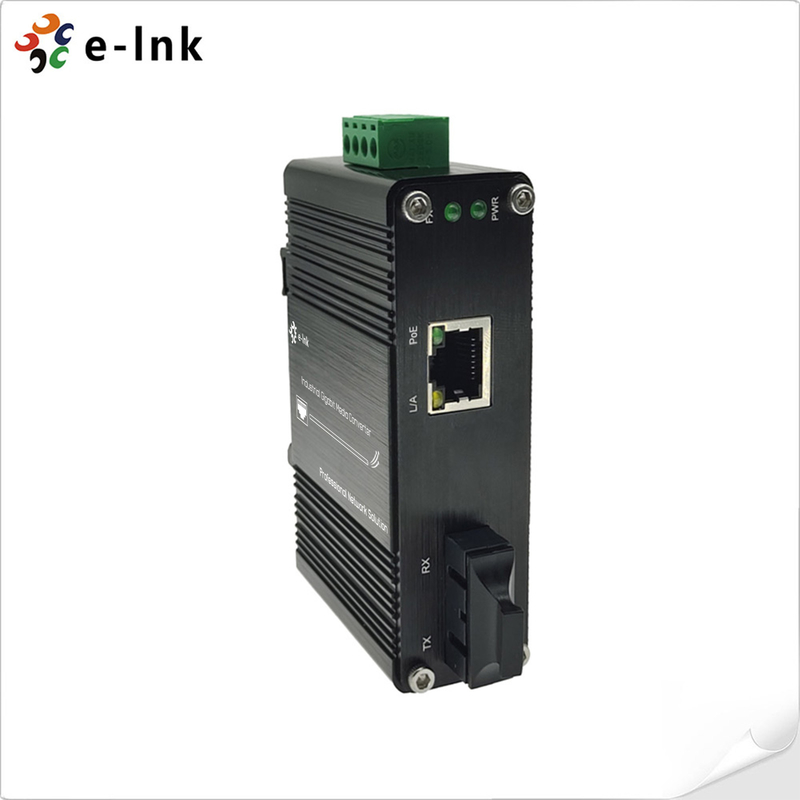

90W POE Fiber Media Converter Mini Industrial 100M SC Port 10/100M Ethernet
Fiber Media Converter Advantages
Specifications
Ethernet | |
|---|---|
Standards: | IEEE802.3bt Power over Ethernet |
Interface | |
Connector: | 1x RJ45 |
Optical Port: | 1 x SC 100Base-FX |
Electrical and Mechanical | |
Input Power: | 48~57VDC, 2-pin terminal block |
Output Power | 48VDC |
Power Consumption: | 95W Max. |
Dimensions (WxDxH): | 95 x 70 x 30 mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
Environmental | |
Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
Order Information
| Model | Description |
| LNK-IMC1100P90 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P90-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P90S-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
