Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO
Model Number: LNK-IMC3012P90 Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$90-105/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Standards 1: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
Standards 2: |
IEEE802.3bt Power Over Ethernet |
Input Power: |
48~57VDC, 2-pin Terminal Block |
Output Power: |
48VDC |
Power Consumption: |
95W Max. |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Standards 1: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
Standards 2: |
IEEE802.3bt Power Over Ethernet |
Input Power: |
48~57VDC, 2-pin Terminal Block |
Output Power: |
48VDC |
Power Consumption: |
95W Max. |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |

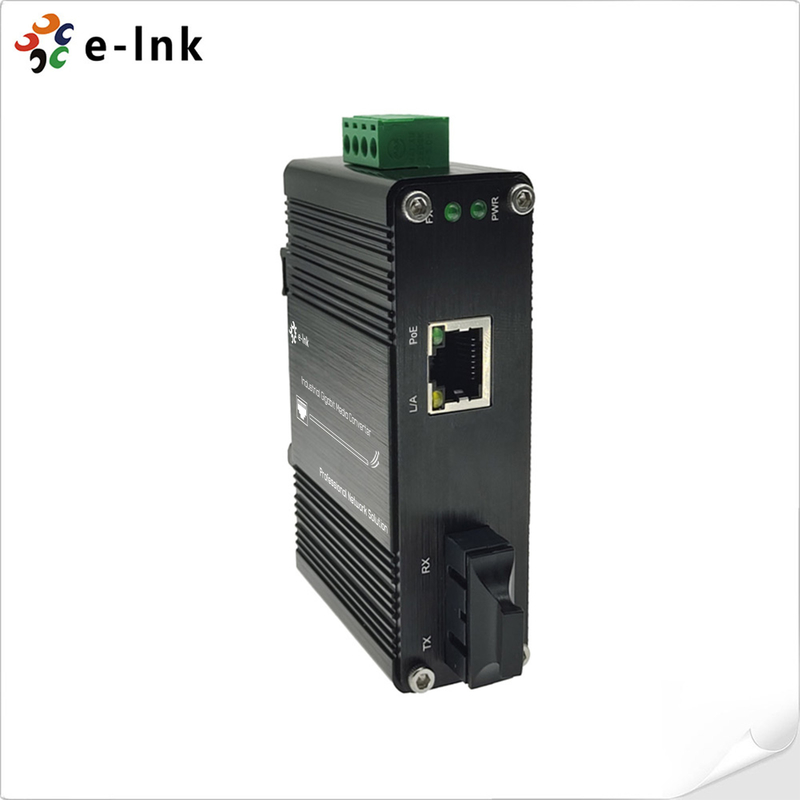

90W POE Fiber Media Converter SC Port Industrial Gigabit Ethernet 10/100/1000M
Fiber Media Converter Advantages
Specifications
|
Interface |
|
|---|---|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x 1000Base-X SC |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, 2-pin terminal block |
|
Output Power |
48VDC |
|
Power Consumption: |
95W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
POE: |
PoE Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Order Information
| Model | Description |
| LNK-IMC3012P90 | Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3012P90-20 | Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3012P90S-20 | Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
