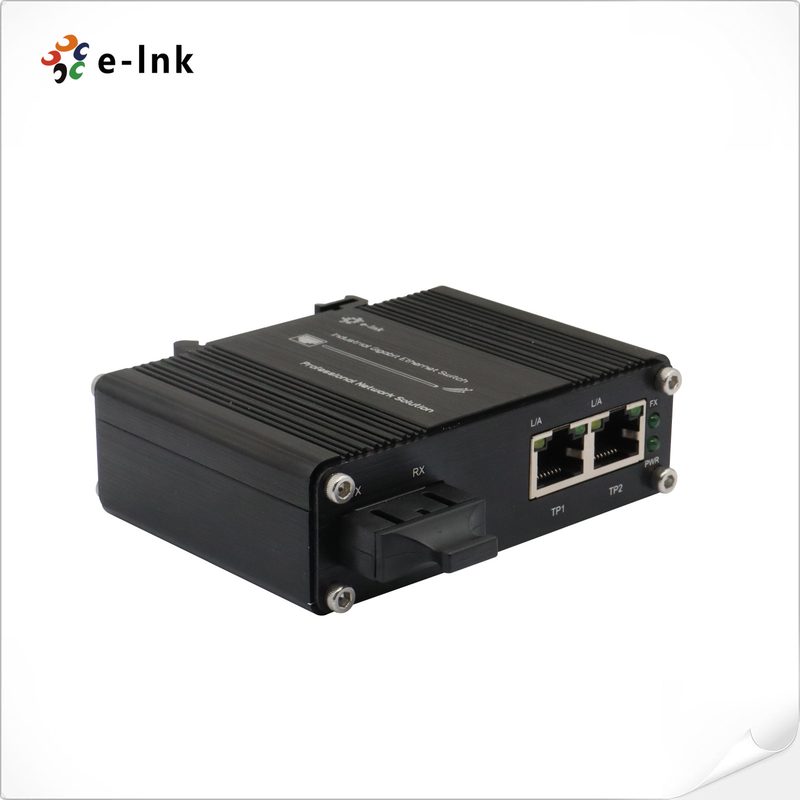

100M Multimode Fast Fiber Media Converter SC RJ45 Ethernet

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO

Model Number: LNK-IMC1200P Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$65-80/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

100M Fiber Media Converter

,

Multimode Fiber Media Converter

,

RJ45 Multimode Media Converter

Feature:
IEEE 802.3az Energy Efficient Ethernet (EEE)
PoE Standard:
IEEE802.3at Power Over Ethernet
Forward Filter Rate:
148,800pps (100Mbps)
Connector NO.:
2 X RJ45
Optical Port:
1 X SC 100Base-FX
Mounting:
DIN-Rail / Wall-mount
Feature:
IEEE 802.3az Energy Efficient Ethernet (EEE)
PoE Standard:
IEEE802.3at Power Over Ethernet
Forward Filter Rate:
148,800pps (100Mbps)
Connector NO.:
2 X RJ45
Optical Port:
1 X SC 100Base-FX
Mounting:
DIN-Rail / Wall-mount
Description
100M Multimode Fast Fiber Media Converter SC RJ45 Ethernet

30W POE Fiber Media Converter Mini Industrial Fast 100M 1xSC + 2xRJ45 Ethernet

Fiber Media Converter Advantages

  • 2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
  • 1-Port 100Base-FX SC
  • 12~48VDC Terminal Block Power Input

Specifications

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 100Base-FX

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

65W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

100M Multimode Fast Fiber Media Converter SC RJ45 Ethernet 0

Order Information

Model Description
LNK-IMC1200P Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P-20 Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200PS-20 Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
