Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-INJ-48-95W
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: PoE Injector Splitter Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500PCS/Month
Keyword: |
PoE Injector Splitter |
Input Powe: |
48~57VDC (Terminal Block) |
Power Consumption: |
100W Max |
Dimensions: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Weight: |
0.25Kg |
Keyword: |
PoE Injector Splitter |
Input Powe: |
48~57VDC (Terminal Block) |
Power Consumption: |
100W Max |
Dimensions: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Weight: |
0.25Kg |
PoE Injector Splitter Gigabit 95W PoE Injector Rj45 Power Over Ethernet
PoE Injector Splitter Advantages
► RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Compatible IEEE802.3bt PoE++
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 48~57VDC Terminal Block Power inputs
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| PoE: | |
| Standard: | IEE802.3af/at/bt |
| Data provide over pairs 1,2TX and 3,6RX | |
| Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) | |
| Max. Power per Port: | 95W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
Overview

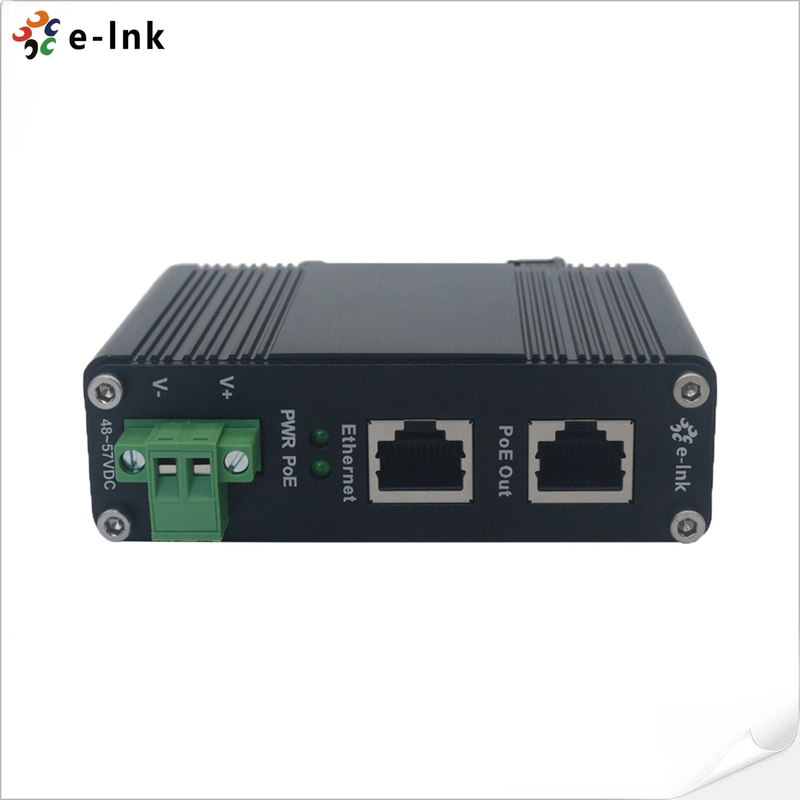

The LNK-INJ-48-95W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Ordering Information
| Model | Description |
| LNK-INJ-48-95W | Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
