Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-1200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD24/PCS
Packaging Details: Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Access Mode: |
10/100Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/100/120 Km |
RJ45 Port: |
2 |
Optical Port: |
1 |
Power Supply: |
External: AC90~264V/DC100~380V Input, 5V1A Output |
Access Mode: |
10/100Mbps |
Wavelength: |
850nm/1310nm/1550nm |
Transmission Distance: |
20/40/60/80/100/120 Km |
RJ45 Port: |
2 |
Optical Port: |
1 |
Power Supply: |
External: AC90~264V/DC100~380V Input, 5V1A Output |
Media Converter 1 Fiber Port+ 2 UTP Ports 10/100M rack mounted 2U 14 slots rack
Media Converter Advantages:
In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX standard.
Support 1k MAC address.
Power and link LED indicators.
Back pressure flow control for full duplex IEEE 802.3X and half duplex.
Automatic identification of MDI/MDI-X cross line.
Support max forwarding packet length 1552/ 1536 bytes option.
Can be rack mounted in 2U 14 slots rack.
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m |
| Port |
Two RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or ST (9/125μm) Single mode Single fiber: SC or ST (9/125μm) |
| Conversion means | Store and Forward mode or Cut-Through mode |
| Buffer space | Built in 128Kb RAM for data buffer |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply | External: AC90~264V/DC100~380V input, 5V1A output |
| Power consumption | <40W (the chassis at full load), <2W |

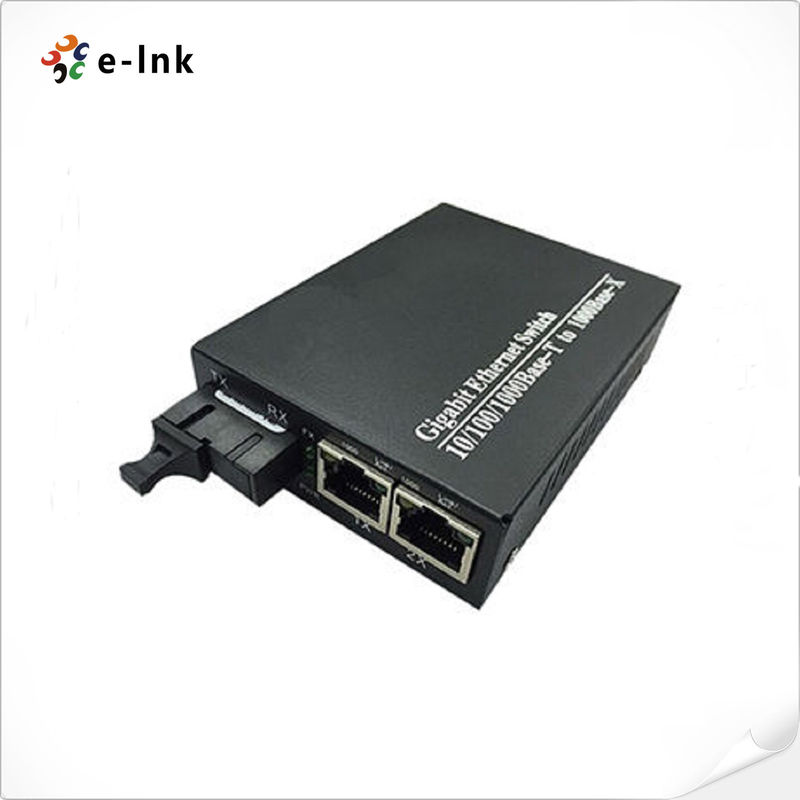

LNK-1200 is the fiber switch with 1 fiber port and 2 UTP ports. The fiber switch makes full use of advanced
optic transmission technology to convert Ethernet signal to optic type and transmit signal over long distance.
This kind of media converter can extend the transmission distance to 2 kilometers (multimode) or 120 kilometers
(single mode), also achieves the function of Ethernet switches. It is an economical solution to employ this kind of
media converter on networking transmission.
Ordering Information
| Item | Description |
| LNK-1200 | 10/100Base-Tx to 100Base-Fx, 1 Fiber port + 2 RJ45 ports, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-1200S-20 | 10/100Base-Tx to 100Base-Fx, 1 Fiber port + 2 RJ45 ports, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-S1200-20 | 10/100Base-Tx to 100Base-Fx, 1 Fiber port + 2 RJ45 ports, single mode, single fiber, 20km, 1310nm/1550nm, SC, standalone, external power adaptor |
