Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-FS2462
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
24 Ports Fiber Ethernet Switch |
Power Characteristic: |
AC 110-240V Adaptive |
Backplane Bandwidth: |
88Gbps |
Processor: |
RISC 400MHz |
Address Table: |
32K |
Power: |
80W |
Keyword: |
24 Ports Fiber Ethernet Switch |
Power Characteristic: |
AC 110-240V Adaptive |
Backplane Bandwidth: |
88Gbps |
Processor: |
RISC 400MHz |
Address Table: |
32K |
Power: |
80W |

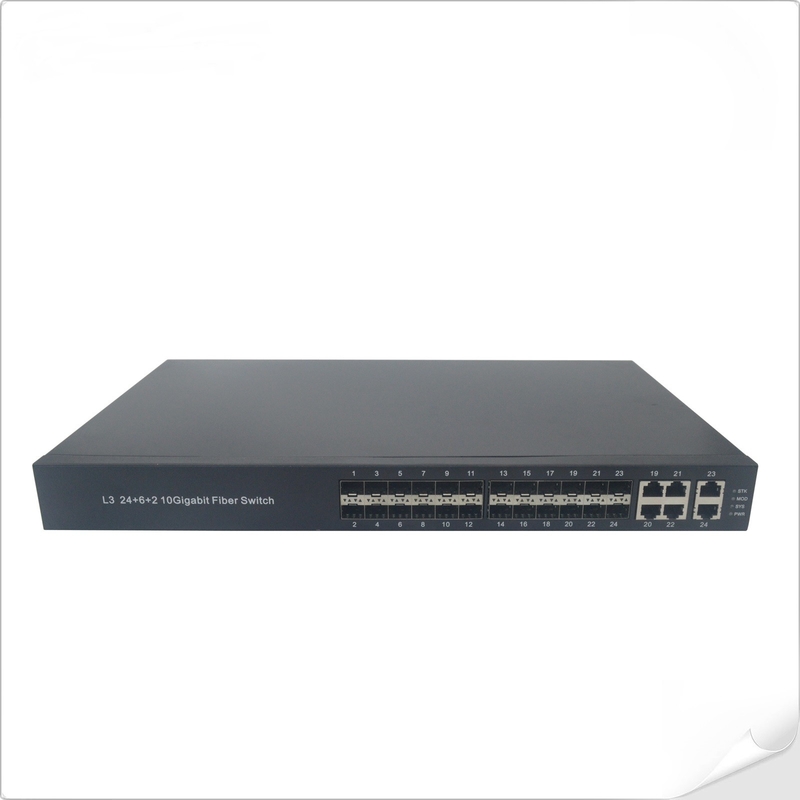

Ethernet Switch Managed 24-Port Gigabit 2-Port 10G SFP 6-Port Combo Fiber Switch
Fiber Ethernet switch Advantages
► Support for 802.1x authentication, and to provide users with access to authentication
► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure
► Support the function of port mirroring, port gathering, port speed limit
► Storm suppression: can be set with the Broadcast, multicast, DLF traffic
Technical Indexes
Fixed port |
24-Port Gigabit SFP Fiber Port + 6-Port Combo Ports+2*10G Extensible (Optional) |
Spanning tree |
Support STP, RSTP, MSTP |
VLAN |
Support port-based VLAN |
Support 802.1Q labeled VLAN |
|
Support for Private Vlan |
|
Broadcast control |
Restraining broadcast storm, stop sending so long as reaching a critical point |
multicast control |
IGMP Snooping multicast message automatic monitoring |
Port binding |
Each group of a maximum of 8, while support 32 group |
Port mirroring |
Support based on flow classification mirroring and port mirroring |
Safety characteristics |
Port Security (Port Security) function Hardware support for IP ACL, MAC ACL, Vlan ACL User classification management and password protection |
Network management |
SNMP v1/v2 |
Overview
LNK-FS2462 Series 24-Port SFP Fiber Switch are standard layer 3 non-blocking switch, based on high-performance ASIC chip technology, the modular structure design , which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange.
Ordering Information
Model |
Description |
LNK-FS246 |
L3 Managed Switch: 24-Port Gigabit SFP + 6-Port Combo Ethernet Port without 2*10G SFP Port |
LNK-FS2462 |
L3 Managed Ethernet Switch: 24-Port Gigabit SFP + 6-Port Combo Ethernet Port + 2*10G SFP Port |
