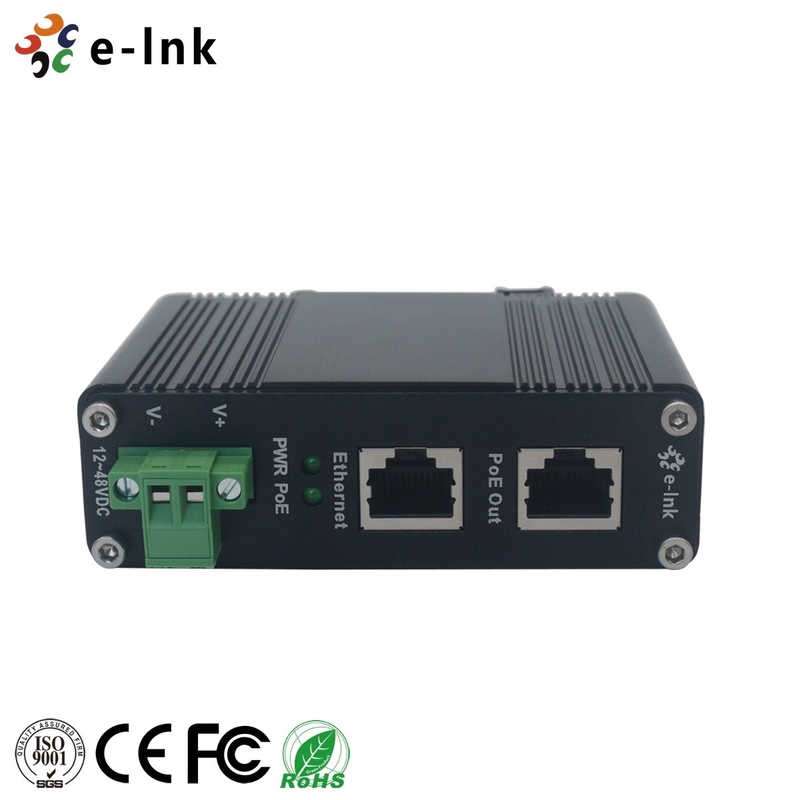

12~48VDC Power Input Industrial Gigabit PoE+ Injector
DIN-Rail & Wall-mount Industrial Gigabit PoE+ Injector Adapter, 12~48V
12~48VDC Power Input Industrial Gigabit PoE+ Injector Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview
The LNK-INJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the
IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the
distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/
100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE
802.3 at. LNK-INJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC
for high availability applications.
Technical Indexes
Ethernet | |
Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
Processing Type: | Forward |
Half-duplex, Full-duplex | |
Forward Filter Rate: | 1,488,000pps (1000Mbps) |
Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
Maximum Distance: | Cat5 UTP up to 100m |
Connector: | 2x RJ45 |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF: | >200,000hrs |
Electrical and Mechanical | |
Input Power: | 12~48VDC (Terminal Block) |
Power Consumption: | 120W Max. |
Power over Ethernet: | |
Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
IEEE 802.3at Power over Ethernet Plus | |
IEEE 802.3af Power over Ethernet | |
Port: | RJ45 |
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
Application
Ordering Infornation
Model | Description |
LNK-INJ301-30 | 12~48VDC Power Input Industrial Gigabit PoE+ Injector |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► Power Supply is to be purchased separately |
