Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-INJ302
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD69/PCS
Packaging Details: Industrial PoE Injector Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Data Rate: |
10/100/1000M |
Max. Power Per Port:: |
60W Max (Alternative B Mode) |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |
Data Rate: |
10/100/1000M |
Max. Power Per Port:: |
60W Max (Alternative B Mode) |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |

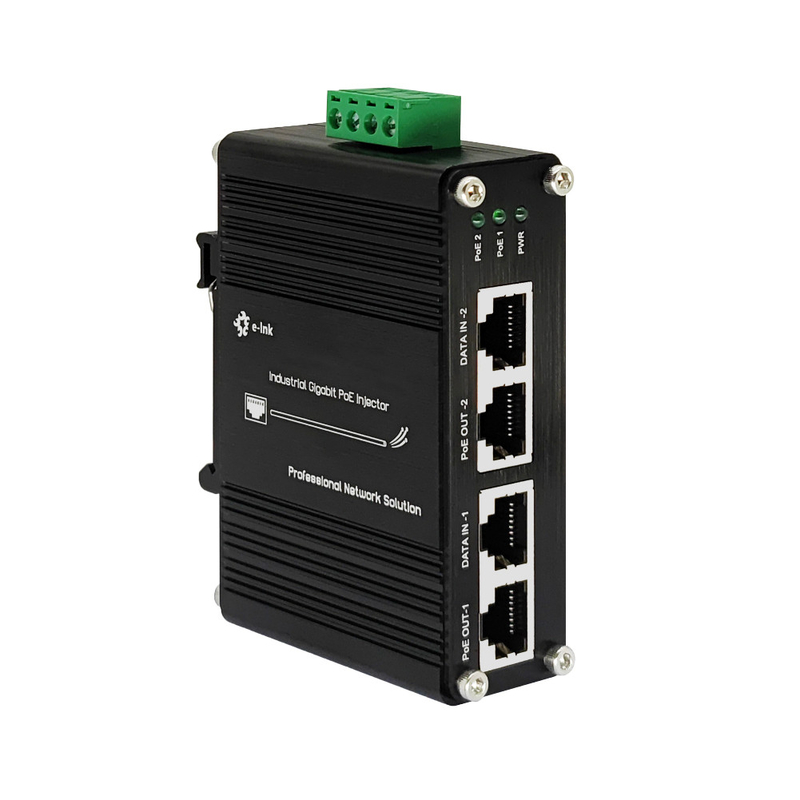

12~48VDC Power Input Mini Industrial 2-Port 10/100/1000M PoE+ Injector
Industrial PoE Injector Advantages:
12~48VDC Power Input
2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)
Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
Max 60W PoE at one port, total POE power less than 60W
Support 10/100/1000Base-TX
Support DIN-Rail & Wall-mount installation.
Extensive LED indicators for PoE diagnostics
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial PoE Injector Specifications
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 4x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 70W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max (Alternative B Mode) |
The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at
PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant
with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
| Model | Description |
|
LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separatel |
