Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-INJ301-M12
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD99/PCS
Packaging Details: Industrial M12 Gigabit PoE Injector Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Data Rate: |
10/100/1000M |
Max. Power Per Port:: |
30W Max |
Port:: |
M12 Connector (8-pin Female M12 A-coding) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |
Data Rate: |
10/100/1000M |
Max. Power Per Port:: |
30W Max |
Port:: |
M12 Connector (8-pin Female M12 A-coding) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |
EN50155 Industrial 1-Port 10/100/1000 PoE Injector With 30W Output
Industrial M12 Gigabit PoE Injector Advantages:
12~48VDC Power Input
Fully compliant with IEEE802.3af/at
Support 10/100/1000Base-TX for power and data output
Support DIN-Rail & Wall-mount installation
Use M12 connectors to ensure tight and robust connections
Extensive LED indicators for PoE diagnostics
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial M12 Gigabit PoE Injector Specifications
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T |
| Connector: | 2x M12 connector (8-pin female M12 A-coding) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC on 5-pin female M12 A-Coding |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | M12 connector (8-pin female M12 A-coding) |
| Max. Power per Port: | 30W Max |

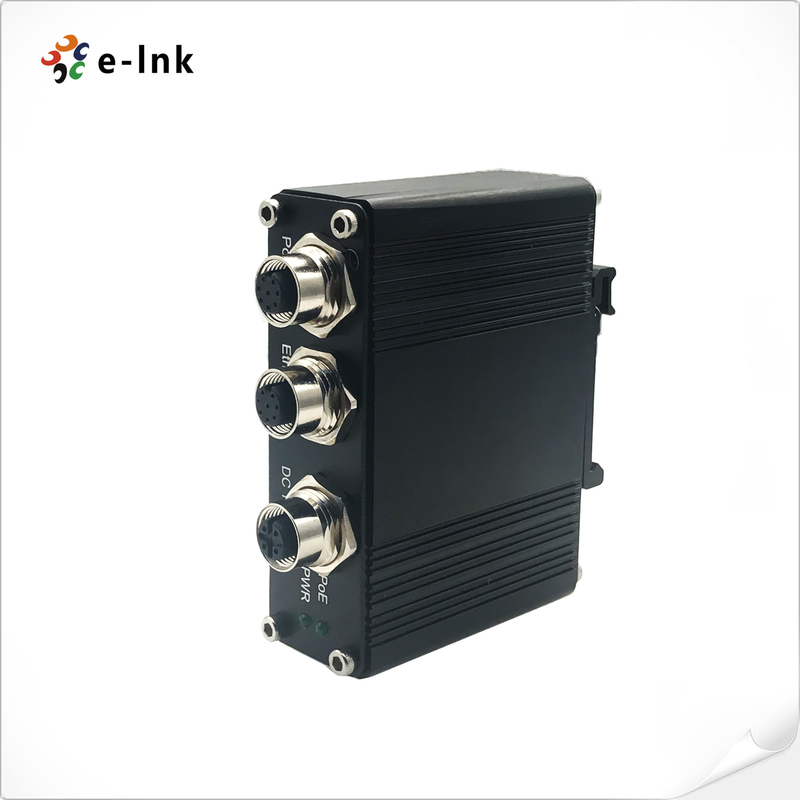

E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle,
and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides
1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial
environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable
operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects
a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage
to non-PoE compliant devices which may be connected to the Ethernet cable.
LNK-INJ301-M12 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
| Model | Description |
|
LNK-INJ301-M12 |
EN50155 Industrial PoE Injector Adapter M12 Connectors Hardened Poe Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separatel |
