Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-FS1602HC
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Enterprise Managed 10G SFP Fiber Switch |
Dimension: |
440mmx285mmx44mm |
RJ45 Port: |
1-port 10/100/1000M |
QSFP Port: |
2-port 40G |
Backplane Bandwidth: |
484Gbps |
Power Supply: |
AC: 90V~290V |
Keyword: |
Enterprise Managed 10G SFP Fiber Switch |
Dimension: |
440mmx285mmx44mm |
RJ45 Port: |
1-port 10/100/1000M |
QSFP Port: |
2-port 40G |
Backplane Bandwidth: |
484Gbps |
Power Supply: |
AC: 90V~290V |

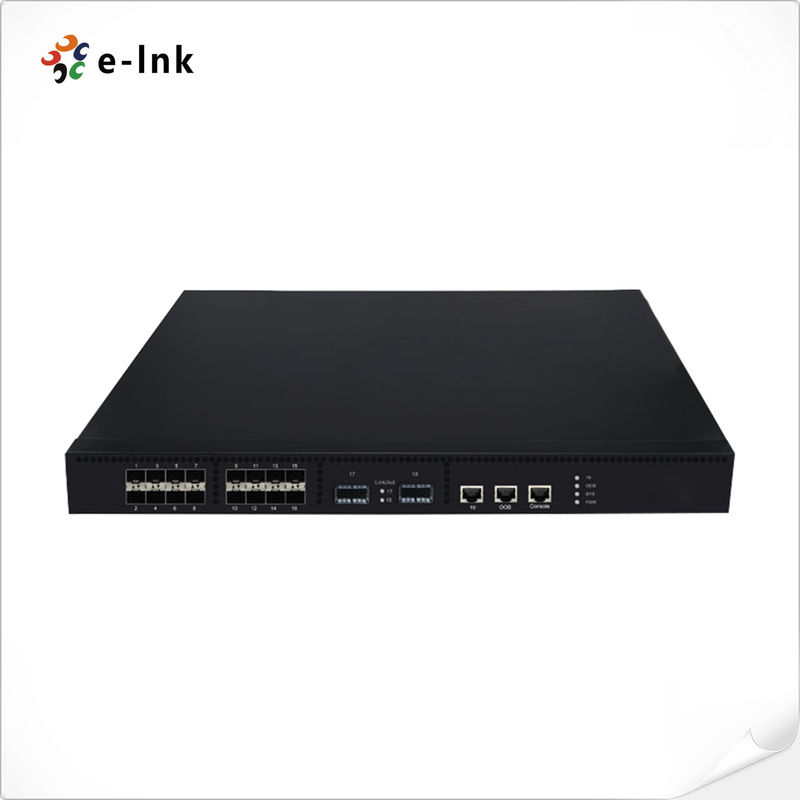

Ethernet Switch Layer 3 Managed 16-Port 10G SFP + 2-Port 40G QSFP Fiber Switch
Enterprise Managed Fiber Switch Advantages
► High density 10G access, performance is remarkable
► Convenient Maintenance
► Powerful Flow and Broadcast Management
► Safe and Reliable
Technical Indexes
Fixed Port |
16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port |
|||
System configuration |
Systerm setting |
View software version, CPU utilization, memory utilization |
||
Network settings |
Configure device management address |
|||
User configuration |
Configure user name and password |
|||
Log configuration |
View and download logs |
|||
TELNET configuration |
TELNET services enable, disable |
|||
HTTPS configuration |
HTTP/HTTPS enabled, disabled |
|||
Diagnostic test |
PING,TRACEROUTE |
|||
Two-layer configuration |
VLAN configuration |
Port mode, PVID, tag/untag list configuration, VLAN create |
||
MAC configuration |
Static MAC configuration, dynamic MAC query |
|||
MSTP configuration |
Support STP, RSTP, MSTP (802.1s) three protocols |
|||
IGMP-snooping |
Static multicast configuration |
|||
DHCP-snooping |
Support static binding, ARP dynamic detection, IP source address check |
|||
Cyber security |
Access control |
Set the access rules for this device |
||
Anti-attack settings |
PING message discard, DOS attack, CPU receive packet rate setting |
|||
ACL settings |
Based on MAC and IP ACL configuration, you can configure the ACL to take effect |
Overview
LNKFS1602 Series is a 10 Gigabit data center switch. Providing 484Gbps switching capacity, the highest performance (1U TOR) in the industry. With 360.092Mpps forwarding performance, L2/ L3 full wire-speed forwarding. With the modular design, it provides 16*10G SFP+ optical ports, 2*40G QSFP+ port, 1 Console port, 1 10/100/1000M RJ45 port, 1*OOB port, which offers enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate, 10G ports according to their needs. 16+2 comes with high bandwidth and low latency, pipe network, this switch located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
Ordering Information
Model |
Description |
LNK-FS1602HC |
L3 Managed Switch: 16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port |
