Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-FS2402HC
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Enterprise Managed 10G SFP Fiber Switch |
Power Supply: |
AC 90V～290V |
Optical Ports: |
24-port 10G SFP |
Combo Port: |
4-port 10/100/1000M RJ45/SFP |
Backplane Bandwidth: |
650Gbps |
Packet Forwarding Rate: |
483.6Mpps |
Keyword: |
Enterprise Managed 10G SFP Fiber Switch |
Power Supply: |
AC 90V～290V |
Optical Ports: |
24-port 10G SFP |
Combo Port: |
4-port 10/100/1000M RJ45/SFP |
Backplane Bandwidth: |
650Gbps |
Packet Forwarding Rate: |
483.6Mpps |

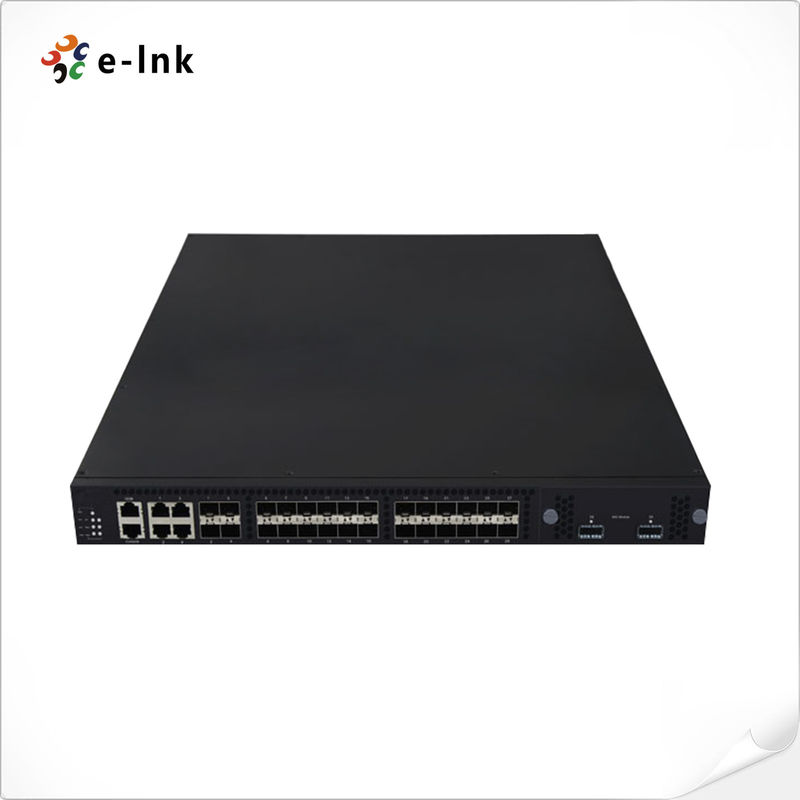

Network Switch Layer 3 Managed 24-Port 10G SFP + 2-Port 40G QSFP Fiber Switch
Enterprise Managed Fiber Switch Advantages
► 24 10Gb optical ports, 2 40G QSFP+ port, meet the demand of high-density 10G server access.
► Restrict the maximum number of hosts connected with the port, increasing bandwidth and system redundancy
► Support IGMP packets detection, effectively limit the flooding of broadcast packets.
► Able to be managed via Web, SNMP,telnet, etc
Managed Industrial Ethernet Switch Technical Indexes
|
Fixed Port |
24x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 4x10/100/1000M RJ45/SFP Combo port, 1xOOB port |
|
|
Jumbo Frames |
9216 bytes |
|
|
IPv4/IPv6 Route |
6k/8k |
|
|
Memory capacity |
1GB DDR3 SDRAM |
|
|
Security feature |
IP+MAC+PORT+VLAN binding ARP inspection DoS defend port protect IP Source Guard binding |
|
|
Port management |
system info port Statistics config port port trunk port-isolate |
|
|
System management |
Support SNMP v1/v2/v3 Support Console Support TELNET Support WEB |
|
Network Switch Hub Overview
LNKFS2402 Series is a 10 Gigabit data center switch. Providing 650Gbps switching capacity, the highest performance (1U TOR) in the industry. With 483.6Mpps forwarding performance, L2/ L3 full wire-speed forwarding. In order to flexibly respond to the network requirements, users can select appropriate, 10G ports according to their needs. LNKFS2402 comes with high bandwidth and low latency, pipe network, this switch located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
10G Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-FS2402HC |
L3 Managed Switch: 24x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 4x10/100/1000M RJ45/SFP Combo port, 1xOOB port |
