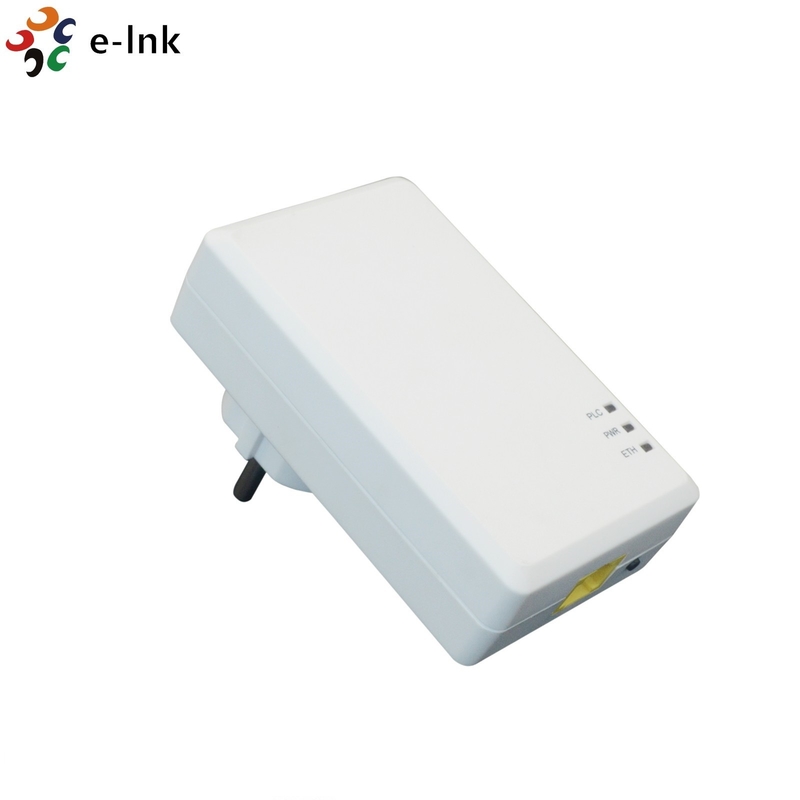

1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Network Adapter Kit

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-P1200

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Powerline Ethernet Adapter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

1200M powerline ethernet adapter

,

HomePlug AV2 powerline ethernet adapter

,

PLC powerline Network Adapter

Keyword:
Ethernet Over Power Adapter
Power:
110-240VAC
Interface:
10/100/1000M Self-adaption RJ-45 Port
Data Rate:
Up To 1.2Gbps
Management:
HTTP Web-based
Operating Temperature:
0℃~40℃
Keyword:
Ethernet Over Power Adapter
Power:
110-240VAC
Interface:
10/100/1000M Self-adaption RJ-45 Port
Data Rate:
Up To 1.2Gbps
Management:
HTTP Web-based
Operating Temperature:
0℃~40℃
Description
1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Network Adapter Kit

1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Adapter Kit

Powerline Adapter Advantages

► No wiring and setting.

► Adopt HomePlug AV2, transmission rate(PHY) up to 1200Mbps.

► Adopt QOS technology, guarantee the transmission stability of streaming media.

► Hardware or software encryption(optional)

► Support TR-069(Remote management and auto upgrade)

Technical Indexes

LED display lights

Ethernet light (ETH)

PLC communication status (ACT)

Power light (PWR)

Ethernet

IEEE802.3

10/100/1000MbpsBaseT auto-sense

Auto rate and duplex negotiation

MDI/MDX support

Modulations OFDM,FEC,Flexible frequency configuration
Management

HTTP Web-based;firmware upgrade via TFTP

TR-069 Supported(Optional)

Security AES 128 bits encryption ensures total data security
Networking Protocols

802.1D Ethernet Bridge

802.1Q VLAN

Quality of Service(QoS)

IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping

Power

110-240VAC 50Hz/60Hz

Auto power saving mode max 0.5W(in standby mode)

Environment Connection

Operating temperature:0-40 degrees Celsius

Relative humidity:8-95%(non-condensing)

Overview

The E-LINK LNK-P1200 which adopts HomePlug AV2 standard supplies the maximum transmission speed at 1200Mbps.You can erect the network through the existing power line of family, just plug it into the power socket wherever you can find, the strong anti-interference ability makes it avoid being interfered by the other electric devices, it also compatible with the IEEE1901 devices and the adoption of MIMO technology upgrades the power line communication speed and quality, it enhances the multimedia streaming quality through prioritizing flux, streaming HD video, high speed network linking, VOIP flux and upgraded QOS functions.

1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Network Adapter Kit 0

1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Network Adapter Kit 1

Ordering Information

Model Description
LNK-P1200 1200Mbit HomePlug AV Powerline Mini Adapter
