Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INJ601
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500pcs/month
Keywords: |
PoE Injector Adapter |
PoE Standard: |
IEEE802.3af/at |
Power: |
60W Max Per Port |
Input Power: |
12~48VDC |
Output Voltage: |
48VDC |
Warranty: |
5 Years |
Keywords: |
PoE Injector Adapter |
PoE Standard: |
IEEE802.3af/at |
Power: |
60W Max Per Port |
Input Power: |
12~48VDC |
Output Voltage: |
48VDC |
Warranty: |
5 Years |

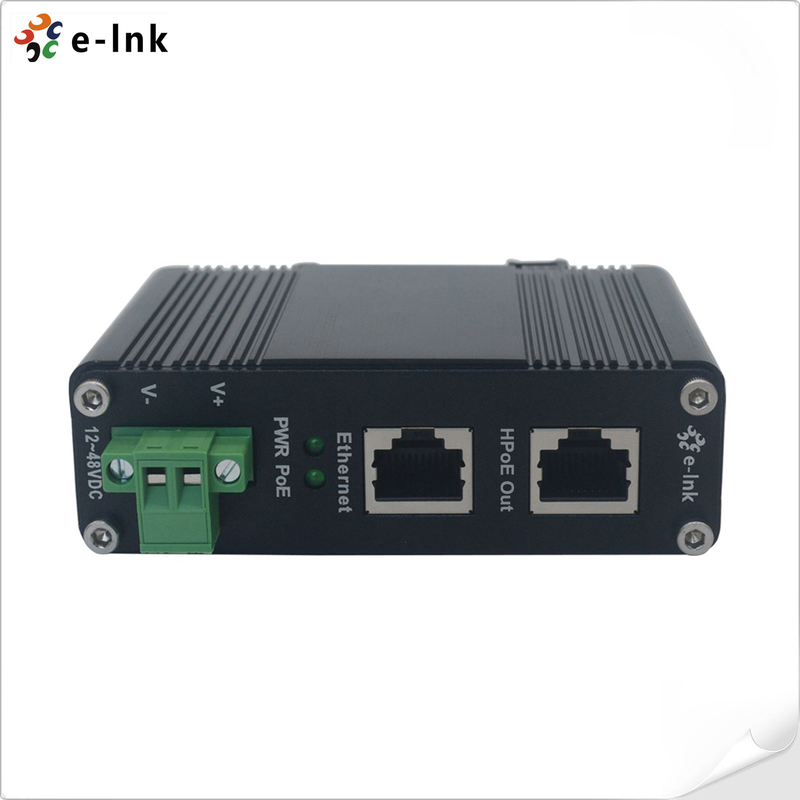

PoE Injector Adapter 12~48V DC Din Rail Gigabit High PoE 60W 802.3at
PoE Injector Adapter Advantages
► 12~48VDC wide range power input with power booster function
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support PoE for Hi-PoE 60W high power consumption speed dome
► Support IEEE802.3af/at Power over Ethernet (PoE+) Power Sourcing Equipment
PoE Injector Adapter Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| Max. Power per Port: | 60W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview
The LNK-INJ601 product is a Hardened Gigabit Hi-PoE 60W Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. It also supports PoE for Hi-PoE 60W high power consumption speed dome.
Ordering Information
| Model | Description |
| LNK-INJ601 | 12~48VDC Power Input Industrial Gigabit Hi-PoE 60W Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
