Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC3012P-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
30W PoE Media Converter |
Input Power: |
12~48V DC |
Connector: |
1x RJ45 10/100/1000BASE-T |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX |
Mounting Options: |
DIN Rail / Wall Mount |
Casing: |
Aluminum Case |
Keyword: |
30W PoE Media Converter |
Input Power: |
12~48V DC |
Connector: |
1x RJ45 10/100/1000BASE-T |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX |
Mounting Options: |
DIN Rail / Wall Mount |
Casing: |
Aluminum Case |
Din Rail Industrial 100 1000BASE-X SFP To 10 100 1000BASE-T 30W PoE Media Converter
Fiber Media Converter Advantages
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Supports Full/Half-duplex, Auto-negotiation
► -40°F to 167°F operating temperature
Gigabit Fiber Converter Technical Indexes
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 36W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |

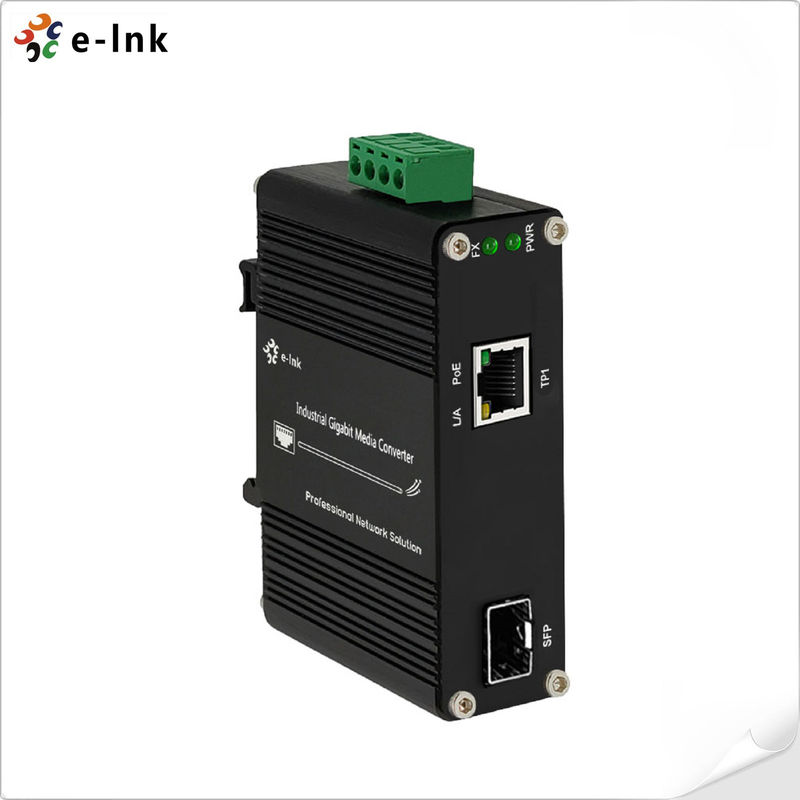

Din Rail Media Converter Overview
LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C.
Industrial 30W Media Converter Ordering Information
| Model | Description |
| LNK-IMC3012P-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
