Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: TS-M348G-4SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Managed Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
L2 Managed 48-Port Ethernet Switch |
Console Port: |
1-port RJ45 |
RJ45 Port: |
48-port 10/100/1000Base-TX |
SFP Port: |
4-port 100/1000Base-FX |
Built-in Power: |
100~240VAC 50/60Hz |
Warranty: |
1 Year |
Keyword: |
L2 Managed 48-Port Ethernet Switch |
Console Port: |
1-port RJ45 |
RJ45 Port: |
48-port 10/100/1000Base-TX |
SFP Port: |
4-port 100/1000Base-FX |
Built-in Power: |
100~240VAC 50/60Hz |
Warranty: |
1 Year |
Commercial Managed Ethernet Switch L2 48-Port RJ45 Gigabit To 4-Port 100/1000X SFP
Commercial Network Switch Hub Advantages
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► Support loop protection, automatic recovery
Layer 2 Managed 48-Port Ethernet Switch Technical Indexes
| Fixed Port |
48 Port 10/100/1000BASE-T 4 Gigabit SFP ports 1 Console port |
| Ethernet standards |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 104Gbps |
| Power |
Built-in power AC 100~240V 50/60Hz MAX Power 500W |
| Dimensions | 440mm x 230mm x 45mm (L x W x H) |
| Installation mode | Rack Mounting |
| Weight | 3600g |
| Operating Temperature | 0℃~50℃ |
| MTBF | 200,000 hours |
16-port RJ45 To 2-port SFP Gigabit Fiber Switch Overview

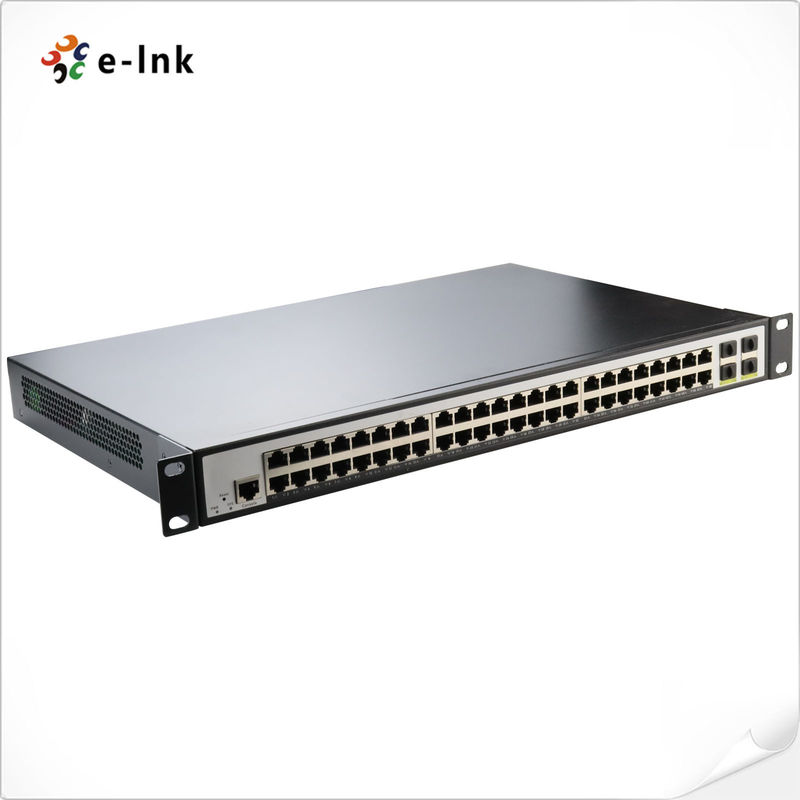

TS-M348G-4SFP product is a Managed Ethernet switch which provides 48 port 10/100/1000Base-T and 4x100/1000Base-X SFP port. This TS-M348G-4SFP 48 ports WEB Smart Gigabit Switches fill the gap between unmanaged and fully managed switches. It is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation.
Enterprise Gigabit PoE Switch Ordering Information
| Model | Description |
| TS-M348G-4SFP | L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Switch |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
