Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-POE204AT
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
PoE Power Supply |
Input Power: |
90-240V AC ,50-60Hz |
Weight: |
2.08Kg |
Casing: |
Plastic Case |
Keyword: |
PoE Power Supply |
Input Power: |
90-240V AC ,50-60Hz |
Weight: |
2.08Kg |
Casing: |
Plastic Case |

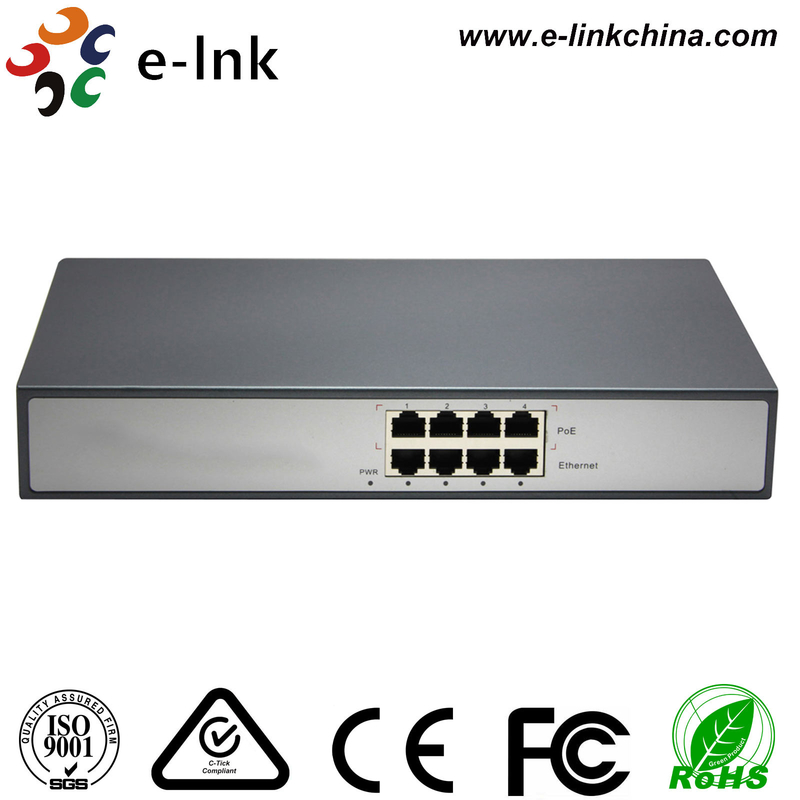

4-Port PoE Injector
PoE Adapter Advantages
► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 8x 10/100M RJ45 ports; 1x AC input port; 4x PoE Ports
► AC input: 90V~264V
► Compatible with IEEE 802.3af,standard(15.4W) , IEEE 802.3at,standard(25.4W)
► Coming with the Ethernet network port and PoE output port
► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
Technical Indexes
| Parameter | Specifications |
| Features |
Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45 |
|
Data Input Interface 4*RJ-45 10/100Base-TX/ Data Input Interface 4*RJ-45 10/100/1000Base-TX |
|
| Output Port Power Cable Included | |
| Data Rate |
10/100Mbps 10/100/1000Mbps |
| Input Power | 90-240V AC ,50-60Hz |
| Output Power |
4*15.4W Max IEEE802.3af 4*30W Max IEEE802.3at |
| Wiring | Data provide over pairs 1/2(+) and 3/6(-) |
| Power over spare pairs 4/5(+) and 7/8(-) | |
| LED Display | YES |
| Operating Temperature | 0 to +40°C, |
| Humidity | Max. 95% RH(non-condensing) |
| Dimension | 280X186X44(H×D×W) |
| Weight | 2.08KG |
Overview
PoE Injector is also called as Power over Ethernet mid-span devices. 4-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 4x RJ45 PoE ports for these 8-Port PoE injectors. This mid-span have 4x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.
Ordering Information
| Model | Decription |
| LNK-POE204 | 4-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
| LNK-POE204AT | 4-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
| LNK-POE304 | 4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
| LNK-POE304AT | 4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
