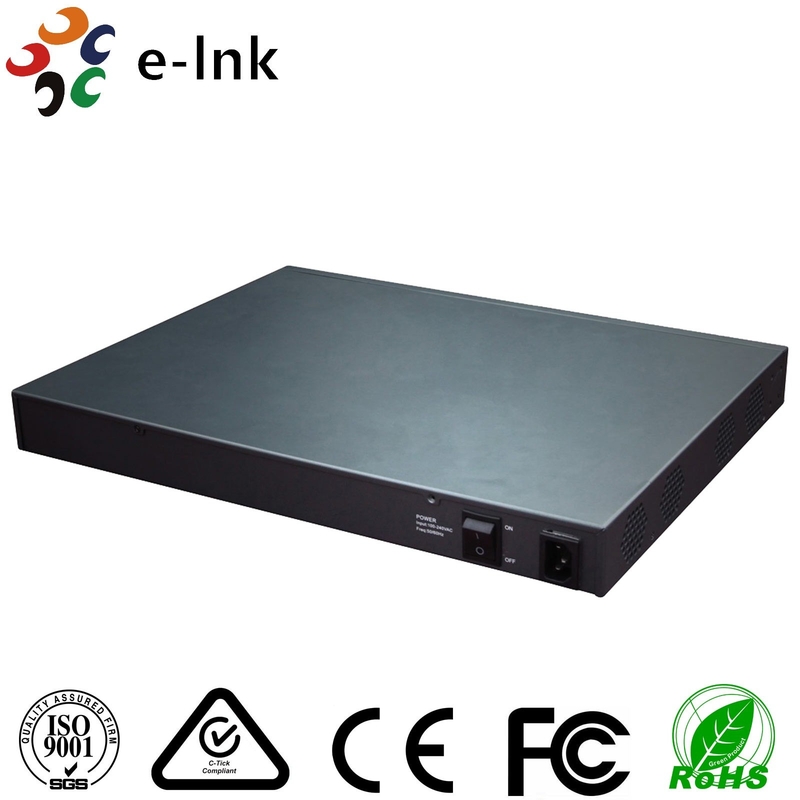

24-Port PoE Injector

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-POE224AT

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: PoE Injector Adapter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:
Keyword:
PoE Power Supply
Input Power:
90-240V AC ,50-60Hz
Weight:
5.5Kg
LED Display:
YES
Keyword:
PoE Power Supply
Input Power:
90-240V AC ,50-60Hz
Weight:
5.5Kg
LED Display:
YES
Description
24-Port PoE Injector

24-Port PoE Injector

PoE Adapter Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 48x 10/100M RJ45 ports; 1x AC input port;24x PoE Ports

► AC input: 90V~264V

► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)

► Coming with the Ethernet network port and PoE output port

► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

Technical Indexes

Parameter Specifications
Features

Conforms to IEEE802.3af standard RJ-45

Conforms to IEEE802.3af standard RJ-45

Data Input Interface 24*RJ-45 10/100Base-TX/

Data Input Interface 24*RJ-45 10/100/1000Base-TX

Output Port Power Cable Included
Data Rate

10/100Mbps

10/100/1000Mbps

Input Power 90-240V AC ,50-60Hz
Output Power

24*15.4W Max IEEE802.3af

24*30W Max IEEE802.3at

Wiring Data provide over pairs 1/2(+) and 3/6(-)
Power over spare pairs 4/5(+) and 7/8(-)
LED Display YES
Operating Temperature 0 to +40°C,
Humidity Max. 95% RH(non-condensing)
Dimension 445X260X45(H×D×W)
Weight 5.5KG




Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 24-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 24x RJ45 PoE ports for these 24-Port PoE injectors. This mid-span have 24x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

24-Port PoE Injector 0

Ordering Information



Model Decription
LNK-POE224 24-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE224AT 24-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE324 24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE324AT 24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
