8-Port 60W PoE++ Injector

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-PSE80GH

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:
PoE:
IEEE 802.3af/at
Power Input:
LNK-PSE80GH
Dimension:
435mm X 225mm X 44.5mm
Casing::
Plastic
Weight:
3.5kg
PoE Power Output:
DC 50V-57V/30-watt PoE Via 2-pairs
PoE:
IEEE 802.3af/at
Power Input:
LNK-PSE80GH
Dimension:
435mm X 225mm X 44.5mm
Casing::
Plastic
Weight:
3.5kg
PoE Power Output:
DC 50V-57V/30-watt PoE Via 2-pairs
Description

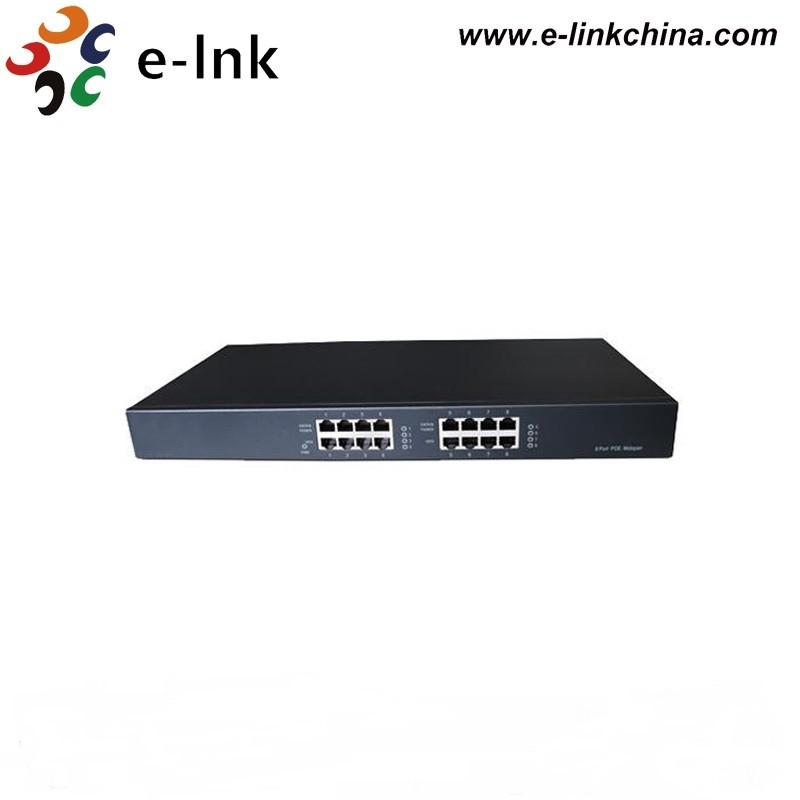

8-Port 60W PoE++ Injector

8-Port 60W PoE++ Injector

PoE Injector Advantages

► 8 ports, total output 480W, per port 60W

► Active PoE Midspan, IEEE802.3at, with detection chip

► Support IEEE802.3af/at PD

► Stand-alone 8-port PoE Midspan, ideal for deployment of IP camera and Wireless network upgrades

► Can detect the PD if support IEEE802.3af/at standard with detection chip inside. If yes, then output 55VDC; or stop work to protect the PD from destroy

► Delivering up to 60W of power per port

► IEEE802.3at compliant and is ideal for deployments Ethernet end-devices are being deployed

Specifications



Parameter Specifications
Standard

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-Tx Fast Ethernet

IEEE802.3ab 1000Base-T Gigabit Ethernet

Support terminal equipment with IEEE802.3af/at

RoHS Compliance

WEEE Compliance

Input & Output

Input :176-265Vac 4.0A 50/60Hz

Output: 55VDC 1100mA

Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-)

Data Speed: 10/100/1000Mbps

Working Environment

Operating Temperature: 0℃ to 40℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20℃ to 70℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 2000meters

AC Surge Protection

1.0KV (5P/5N)

L-N 1.2/50 (8/20) Tr/Th us

2.0KV (5P/5N)

L-PE 1.2/50 (8/20) Tr/Th us

N -PE

Mechanical Characteristics Case: Metal
Color: Black
Mounting: Rack-mounted / Wall-mounted
IP Rated: IP20
Size: 435mm X 225mm X 44.5mm
Weight: 3.5kg
Safety Approvals CE, FCC
EMI FCC CFR47 Part 15, EN55024, EN55032
EMS

IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)

IEC61000-4-3(RS) 10V/m(80MHz~2GHz)

IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV

IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM

IEC61000-4-6(CS) 10V(150kHz~80MHz)

Immunity

IEC60068-2-6(Vibration)

IEC60068-2-27(Impact)

IEC60068-2-32(Free Fall)

LED Indicator

Power Indicator: Green

PoE Load Indicator: Green



Overview

LNK-PSE80GH is an economic 8-port PoE Midspan with high-impact metal case. Each port provides power up to 55VDC, 1.1A for remote PDs. It supports 10/100/1000Mbps of data speed. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It supports terminal equipment with IEEE802.3af/at standard.



LNK-PSE801GH is designed for indoor use. It works with input voltage of 176-265Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. With the Midspan's plug-and play installation Desktop or Rack-mounted or Wall-mounted , power and data can be delivered easily while it is cost-effectively.



8-Port 60W PoE++ Injector 0

Order Information



Model Decription
LNK-PSE801GH 8-Port 60W High PoE Injector: 55VDC/60W per port/1000Mbps/4,5(+), 7,8(-)&3,6(+),1,2(-)
