Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-INJ302
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: PoE Injector Splitter Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000PCS/Month
Keyword: |
PoE Injector Splitter |
Connector: |
4x RJ45 |
PoE Standard: |
IEEE802.3af/at |
Max. Power Per Port: |
60W Max (Alternative B Mode) |
Power Input: |
12-48VDC |
Weight: |
0.26Kg |
Keyword: |
PoE Injector Splitter |
Connector: |
4x RJ45 |
PoE Standard: |
IEEE802.3af/at |
Max. Power Per Port: |
60W Max (Alternative B Mode) |
Power Input: |
12-48VDC |
Weight: |
0.26Kg |

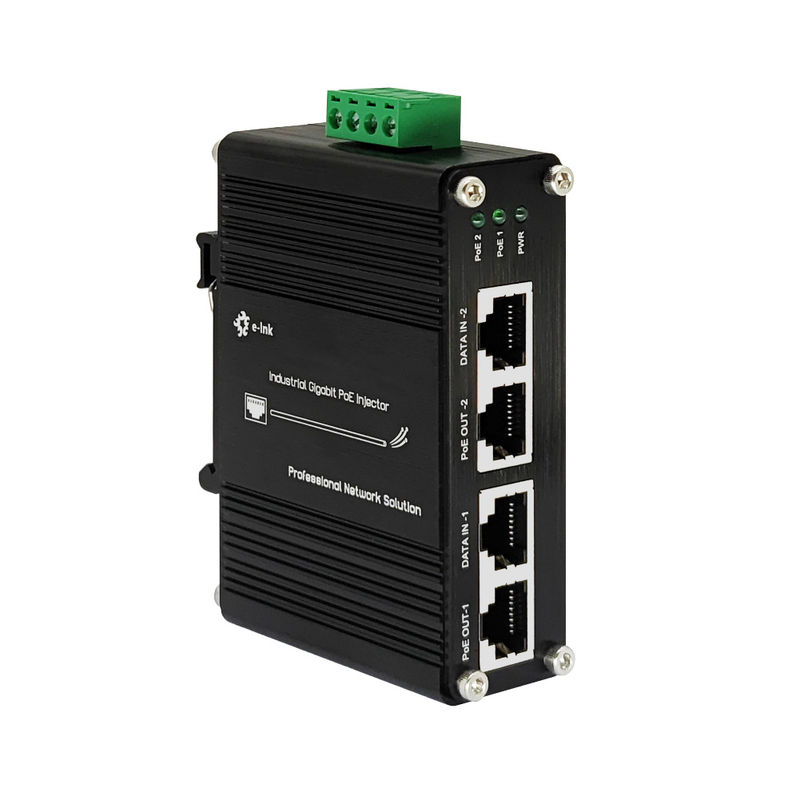

Industrial 2 Port Gigabit PoE+ Injector 12VDC 48VDC Power Input
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 4x RJ45 |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 70W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max (Alternative B Mode) |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| CE-EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Overview
The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
| Model | Description |
| LNK-INJ302 | 12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
