165MHz DVI To Optical Converter 1Ch Bidirectional Stereo Audio 1Ch RS232

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-DVI-1D1BA

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

165MHz DVI To Optical Converter

,

2.97Gbps DVI To Optical Converter

,

165MHz Dvi To Fiber Converter

Standards:
DVI 1.0 And HDCP 1.2
Maximum Pixel Clock:
165MHz
Maximum Data Rate:
2.97Gbps
Resolution:
Max 1920*1200@60Hz
Power Adapter:
DC 5V
Dimension:
120 X 83 X 28 (mm)
Standards:
DVI 1.0 And HDCP 1.2
Maximum Pixel Clock:
165MHz
Maximum Data Rate:
2.97Gbps
Resolution:
Max 1920*1200@60Hz
Power Adapter:
DC 5V
Dimension:
120 X 83 X 28 (mm)
Description
165MHz DVI To Optical Converter 1Ch Bidirectional Stereo Audio 1Ch RS232

165MHz DVI To Optical Converter 1Ch Bidirectional Stereo Audio 1Ch RS232



DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender



DVI Fiber Converter Advantages

  • Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
  • Support resolution up to 1920*1200@60Hz ;
  • Special support 1600*1200 @60HZ
  • Support external bidirectional stereo audio transmission;
  • Compliance with DVI 1.0 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Specifications

Parameter Description















Video













Standards

DVI 1.0 and HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Compliant

1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Special support 1600*1200 @60HZ

Connector Female DVI-D
Impedance 100Ω
DVI Cable Range <5Meter (Resolution up to 1920*1200@60Hz)
Audio Interface 3.5MM external stereo audio
Transmitter 1Ch Input + 1Ch Output
Receiver 1Ch Input + 1Ch Output
RS232 Interface 3-Pin Terminal Block
Baud Rate ≤115200
Data Bits 8 bits
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode
Wavelength 850nm/1310nm/1550nm
Interface bandwidth 3Gbps
Transmission distance

Multi-mode fiber: <500M

Single-mode fiber: 0~80km

Other Power supply The power adapter: DC 5V
Power dissipation MAX 4W
Temperature Operating: -20℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 120 x 83 x 28 (mm)

Overview

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function.

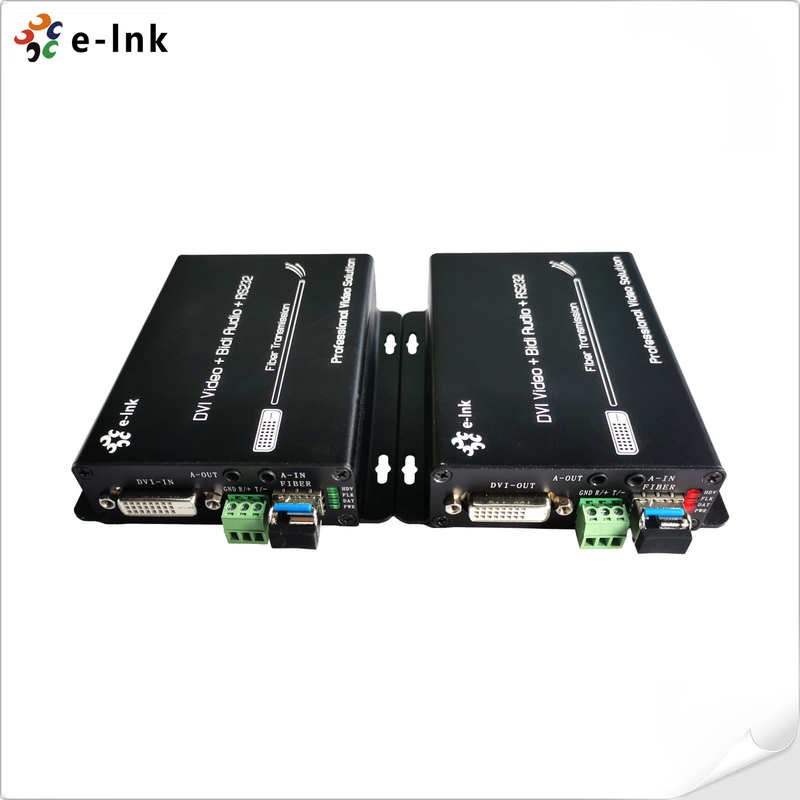

165MHz DVI To Optical Converter 1Ch Bidirectional Stereo Audio 1Ch RS232 0

165MHz DVI To Optical Converter 1Ch Bidirectional Stereo Audio 1Ch RS232 1

Order Information

Item Description
LNK-DVI-1D1BA 1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multimode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-DVI-1D1BA-20 1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
