Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: TS-M324G-4XSFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
24 Port Fiber Optic Switch |
Management Grade: |
Layer Three Management |
RJ45 Port: |
24 Port 10/100/1000BASE-T |
Fiber Port: |
4 10Gigabit SFP+ |
Bandwidth: |
128Gbps |
Defects Liability Period: |
1 Year Warranty |
Keyword: |
24 Port Fiber Optic Switch |
Management Grade: |
Layer Three Management |
RJ45 Port: |
24 Port 10/100/1000BASE-T |
Fiber Port: |
4 10Gigabit SFP+ |
Bandwidth: |
128Gbps |
Defects Liability Period: |
1 Year Warranty |

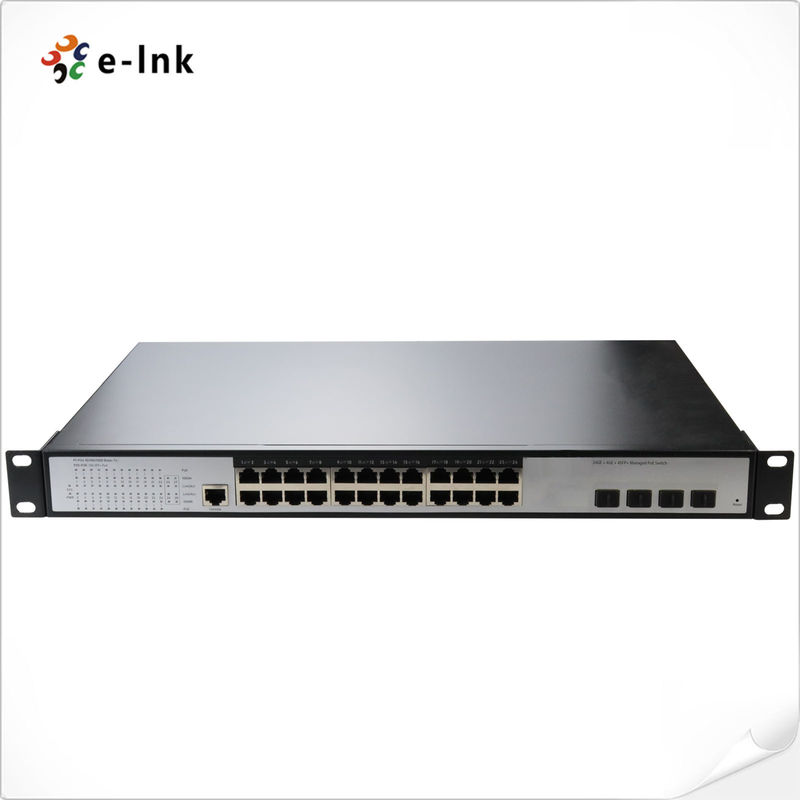

SFP+ Managed Ethernet Switch 128Gbps 24 Port Fiber Optic Switch
L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
4-Port 10G Network Switch Advantages
► 24-Port 10/100/1000Base-T RJ45
► 4-Port 10G SFP+
► RJ45 console interface for basic management and setup
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
Layer 3 Managed Ethernet Switch Technical Indexes
| Physical Port | |
| Fixed Port |
24 Port 10/100/1000BASE-T 4 10Gigabit SFP+ ports 1 Console port 1 USB port 1 Reset port |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |
| Power | Built-in power AC 100~240V 50/60Hz |
| Physical Property | |
| Protection grade | IP30 |
| Dimensions | 440mm x 290mm x 45mm (L x W x H) |
| Installation mode | Rack Mounting |
| Working Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~75℃ |
24-port RJ45 To 4-port 10G SFP Ethernet Switch Overview
E-link TS-M324G-4XSFP L3 Managed Ethernet Switch, featuring 24 10/100/1000BASE-T and 4 10G SFP+ ports in a 1U case. With 10Gbps uplink, the TS-M324G-4XSFP can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 dynamic routing capability, and advanced ERPS Ring technology to improve the rapid self-recovery capability for controlling the outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly.
Ordering Information
| Model | Description |
| TS-M324G-4XSFP | L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
