Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-114GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 29USD/PCS
Packaging Details: PoE Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs/month
Keyword: |
PoE Ethernet Switch |
Bandwidth: |
12Gbps |
Power Budget: |
65W |
MTBF: |
100000 Hours |
Color: |
Black |
Weight: |
0.5Kg |
Keyword: |
PoE Ethernet Switch |
Bandwidth: |
12Gbps |
Power Budget: |
65W |
MTBF: |
100000 Hours |
Color: |
Black |
Weight: |
0.5Kg |

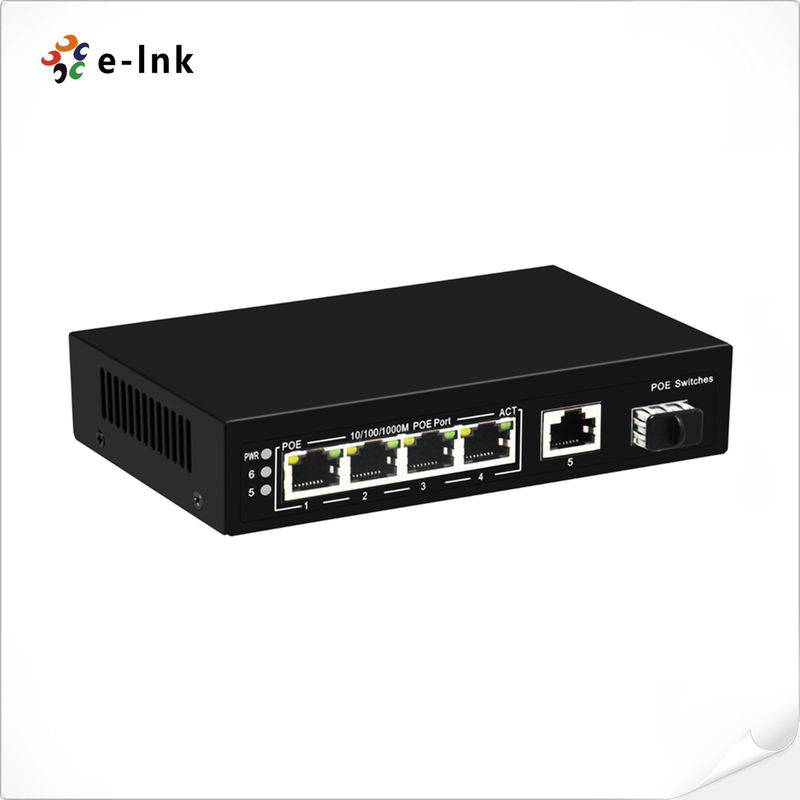

12Gbps 4 Port Ethernet Switch Gigabit TP SFP Uplink Ethernet Switch
4-port 10/100/1000BASE-T PoE and 1-port Gigabit TP/SFP Uplink Ethernet Switch
PoE Ethernet Switch Advantages
►4*10/100/1000M PoE Ports + 1*1000M Ethernet Uplink Port + 1*1000M SFP Port;
►Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards;
►Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
►Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
►Support port auto flip (Auto MDI/MDIX);
►Exchange mechanism using store-and-forward;
►All ports support wire-speed switching;
►Automatically supplied to adaptive devices;
►Panel indicator monitoring status and help failure analysis
Technical Indexes
Model | LNK-114GP-SFP Series |
Port | 4 Ports 10/100/1000M PoE + 1 Port 1000M Ethernet Uplink + 1 Port 1000M SFP Uplink |
Network protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z |
POE parameter | PoE standard: IEEE802.3af /IEEE802.3at |
Each port power:15.4 W (IEEE 802.3af) |
|
PoE compatibility:IEEE 802.3af/at adaptive | |
POE output voltage: DC48~55V | |
POE power pin: Power over spare pairs 1/2(+) , 3/6 (-) | |
Optical Fiber |
Multimode Fiber: 850/1310nm, Transmission Distance: 550m/2Km |
Network media |
10Base-T: Cat3 or later UTP/STP(≤100m) |
Performance |
Bandwidth: 12Gbps |
Power supply |
Adapter Input Voltage: AC100-240V; |
Power Budget | 65W |
Certification | CE Mark, commercial; CE/LVD EN60950, RoHS, FCC |
Radiation | CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
Physical structure |
Product size(L×W×H):140*85*30mm |
MTBF | 100000 hours |
Warranty | 2 years |
Overview
With 4*10/100/1000M PoE Ports + 1*1000M Ethernet Uplink Port + 1*1000M SFP Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
Ordering Information
Model | Description |
LNK-114GP-SFP | 4*10/100/1000M PoE Ports + 1*1000M Ethernet Uplink Port + 1*1000M SFP Port Total power budget 65Watts |
