Bandwidth 1.0Gbps Gigabit Uplink Ethernet Switch Color Color

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-208GP

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiation

Packaging Details: PoE Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability: 10000

Get Best Price
Contact Now
Specifications
Highlight:

1.0Gbps Uplink Ethernet Switch

,

ROHS Uplink Ethernet Switch

,

1.0Gbps Gigabit Ethernet Switch

Keyword:
PoE Ethernet Switch
Port:
10x10/100M RJ-45 POE Port, 2x10/100M RJ-45 Uplink Port
Bandwidth:
1.0Gbps
Warranty:
2 Years
MTBF:
100000 Hours
Color:
Black
Keyword:
PoE Ethernet Switch
Port:
10x10/100M RJ-45 POE Port, 2x10/100M RJ-45 Uplink Port
Bandwidth:
1.0Gbps
Warranty:
2 Years
MTBF:
100000 Hours
Color:
Black
Description
Bandwidth 1.0Gbps Gigabit Uplink Ethernet Switch Color Color

Bandwidth 1.0Gbps Gigabit Uplink Ethernet Switch Color Color



8-port 10/100/1000BASE-T PoE and 2-port Gigabit Uplink Ethernet Switch



PoE Ethernet Switch  Advantages

  • 8*10/100/1000M RJ45 POE port+2*10/100/1000M RJ45 uplink port
  • Support IEEE802.3, IEEE802.3U, IEEE802.3af/at
  • Ethernet port support 10/100/1000M and POE function
  • Flow control: Full-duplex: IEEE802.3x, Half-duplex: Back pressure
  • Support port auto MDI/MDIX
  • With storing-and-forwarding mode
  • All port support line switching and jumbo frame
  • Zero configuration features, automatically provided to the adaptive device
  • Panel lights to monitor the working status and help failure analysis

Technical Indexes

Product name 10-Port 10/100/1000M Ethernet Switch with 8 PoE ports and 2 Gigabit Uplink
Model LNK-208GP Series
Port 8x 10/100/1000M RJ-45 POE port, 2x10/100/1000M RJ-45 uplink port
Network protocol

IEEE 802.3i 10BASET;

IEEE 802.3u 100BASETX;

IEEE 802.3x Flow Control;

IEEE 802.1af DTE Power via MDI;

IEEE 802.3af/at

POE parameter PoE standard: IEEE802.3af /IEEE802.3at

Each port power: 15.4W (IEEE 802.3af)

Each port power: 30W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at adaptive
POE output voltage: DC48V
POE power pin:1/2+; 3/6-
Network media

10Base-T: Cat3 or later UTP/STP(≤100m)

10Base-T: Cat6 or later UTP/STP(≤250m)

100Base-TX: Cat5 or later UTP/STP(≤100m)

Performance

Bandwidth: 20Gbps(non-blocking)

Address Database Size: 8K

MTBF: 190,000 hours (about 21 years)

Forwarding mode Store-And-Forward
Power supply Input: AC110-260V Output: 52V2.88A
Power 150W
LED indicator

Green light: Ethernet

Red light: POE

Working environment

Working temperature: -20℃ to 55℃

Storage temperature: -40℃ to 80℃

Working humidity: 10% to 90%RH no condensing

Storage humidity: 5% to 90%RH no condensing

Certification CE Mark, commercial; CE/LVD EN60950, RoHS, FCC
Radiation CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Physical structure

Product size(L×W×H): 220*160*35mm

Product weight: 1.2kg

Packing weight: 1.16kg

Packaging list

1. Switch: 1 SET

2. Power Cord: 1 PCS

3. Manual: 1PCS

4. Certificate: 1PCS

5. Warranty card: 1PCS

MTBF 100000 hours
Warranty 2 years






Overview

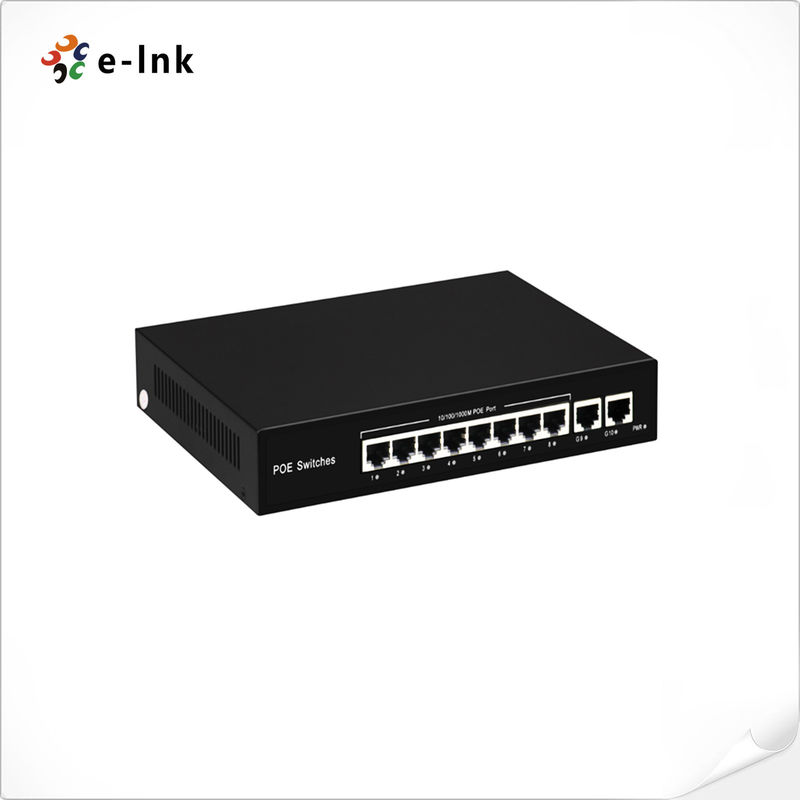

LNK-208GP Series PoE Switch is equipped with 8-port 10/100/1000BASE-TX PoE and 2-port 1000Base-T uplink. LNK-208GP Series PoE switch can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). There is no need to worry about the damage of standard POE or Non-POE device, it will be power off when the POE Device is not connecting. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Ordering Information

Model Description
LNK-208GP 10-Ports 10/100/100M switch with 8 PoE ports, IEEE 802.3af/at; PoE Power Output: 15.4Watts/30Watts per port. Total power budget 120Watts
