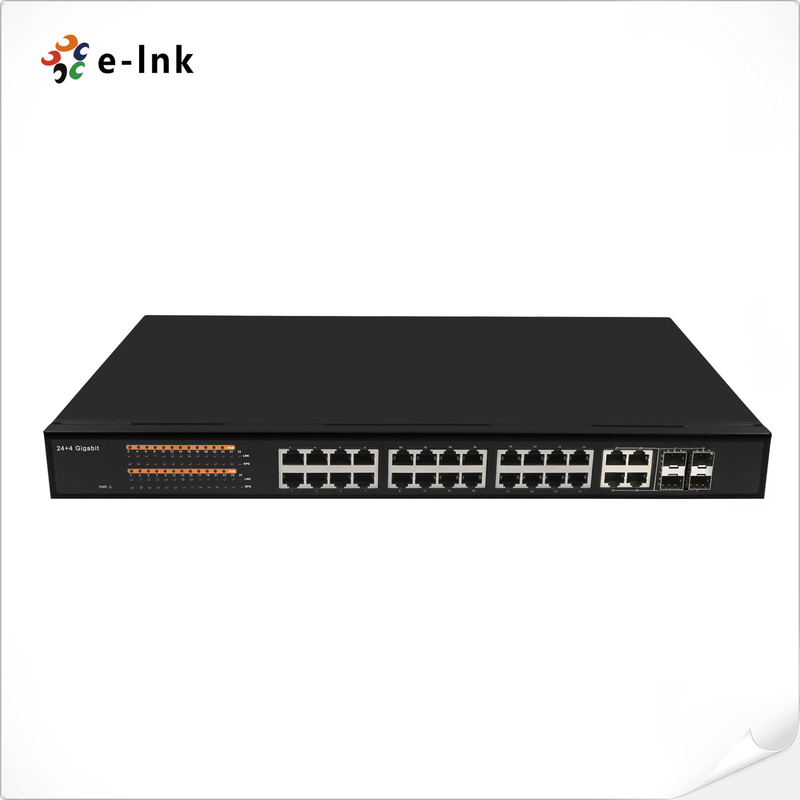

24 Port 802.3at PoE Ethernet Switch IPv6 Managed Network Switch\

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-M424GP-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

802.3at PoE Ethernet Switch

,

IPv6 Ethernet Switch

,

IPv6 Managed Network Switch

Overload Protection:
Yes
Power Input:
AC 100-240V
Power Reverse:
Support
Fiber Port:
2x1000Base-FX SFP
Weight:
3.6kg
MTBF:
65,000 Hours
Overload Protection:
Yes
Power Input:
AC 100-240V
Power Reverse:
Support
Fiber Port:
2x1000Base-FX SFP
Weight:
3.6kg
MTBF:
65,000 Hours
Description
24 Port 802.3at PoE Ethernet Switch IPv6 Managed Network Switch\

24 Port 802.3at PoE Ethernet Switch IPv6 Managed Network Switch



Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000 SFP Combo Ethernet Switch



Managed Ethernet Switch Advantages

  • 24x10/100/1000Base-TX RJ45 ports, 4xTP/SFP Combo ports, 24xPoE
  • SFP interface support 100/1000Base-X SFP auto-negotiation
  • Support Auto-MDIX, and full/half duplex self-negotiation mode
  • Support 10K bytes giant frame, compatible with various extension protocol
  • 8K MAC address table
  • Support IEEE802.3az energy efficient Ethernet technology
  • Support IPv6 Protocol
  • Static Routing can be customized
  • Electric 4KV surge protection, easy to use in outdoor environment
  • Complete status indicator, working state at a glance
  • Power input polarity protection design, no worry about wrong operation
  • Metal case, no fan design
  • Installation method: Rack mounting

Technical Indexes



Physical Port
RJ45 port and speed 24x10/100/1000ase-TX
Fiber port and speed 4x1000Base-FX SFP
Parameters
Ethernet standards IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/100BASE-FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-SX/1000BASE-LX
IEEE802.3x Full duplex and flow control
IEEE802.1Q Tag VLANs
Packet buffer 4Mbits
Maximum packet length Up to 10k Bytes
MAC address table 8K
Transmission mode Store and Forward (full/half duplex mode)
Exchange property Delay time: < 7μs
Backplane bandwidth: 56Gbps
Packet forwarding rate: 47.616Mpps
PoE
PoE Standard 24x IEEE 802.3af /IEEE 802.3at PoE
Power budget Max. PoE output power budget 30W
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Power access mode Phoenix terminal, DC seat
Redundant power input AC 100-240V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W (No PoE load)
Physical Property
Enclosure Metal
Cooling mode Natural cooling, no fan design
Dimensions 440mm x 200mm x 45mm (L x W x H)
Installation mode Rack-mountable
Weight 3.6kg
Working Environment
Operating Temperature 0℃~50℃
Operating Humidity 5%~90% non-condensing
Storage Temperature -10℃~70℃
Warranty
MTBF 65,000 hours
Defects Liability Period 2-year warranty, lifetime technical support
Certification Standard
EMI FCC Part15 Subpart B Class A, EN 55022 Class A
EMS EN61000-4-2(ESD),
EN61000-4-3(RS),
EN61000-4-4(EFT),
EN61000-4-5(Surge),
EN61000-4-6(CS),
EN61000-4-8,
EN61000-4-11
Collision IEC60068-2-27
Drop IEC60068-2-32
Vibration IEC60068-2-6
Safety grade EN60950-1
Software Features
Redundant network: STP/RSTP
Multicast: IGMP Snooping V1/V2
VLAN: IEEE 802.1Q 4K VLAN, QINQ
Link Aggregation: manual
Management Function: CLI/WEB/SNMP
Diagnostic Maintenance: Port mirroring, Ping
Alarm management: 1-way relay alarm output, RMON, SNMP Trap
Security: DHCP Snooping, User hierarchical management
Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control.
Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression

Overview

LNK-M424GP-SFP is a new generation Managed PoE switch with 24-Port 10/100/1000Base-TX and 4-Port Gigabit TP/SFP (100/1000 SFP) Combo that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

24 Port 802.3at PoE Ethernet Switch IPv6 Managed Network Switch\ 0



Ordering Information



Model Description
LNK-M424GP-SFP Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port TP/SFP Combo Ethernet Switch
LNK-M424GP-SFP-SR Managed 24-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000 SFP Combo Ethernet Switch with static routing function
