Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-M8G2F
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Commercial Managed Gigabit Ethernet Switch |
Fixed Port: |
8 1G/10G RJ45 Ports + 2 10G SFP+ Optical Ports |
Chip: |
BCM |
Backplane Bandwidth: |
200Gbps |
Dimension: |
438.48mm*284mm*43.4mm |
Operating Temperature: |
0°C～50°C |
Keyword: |
Commercial Managed Gigabit Ethernet Switch |
Fixed Port: |
8 1G/10G RJ45 Ports + 2 10G SFP+ Optical Ports |
Chip: |
BCM |
Backplane Bandwidth: |
200Gbps |
Dimension: |
438.48mm*284mm*43.4mm |
Operating Temperature: |
0°C～50°C |

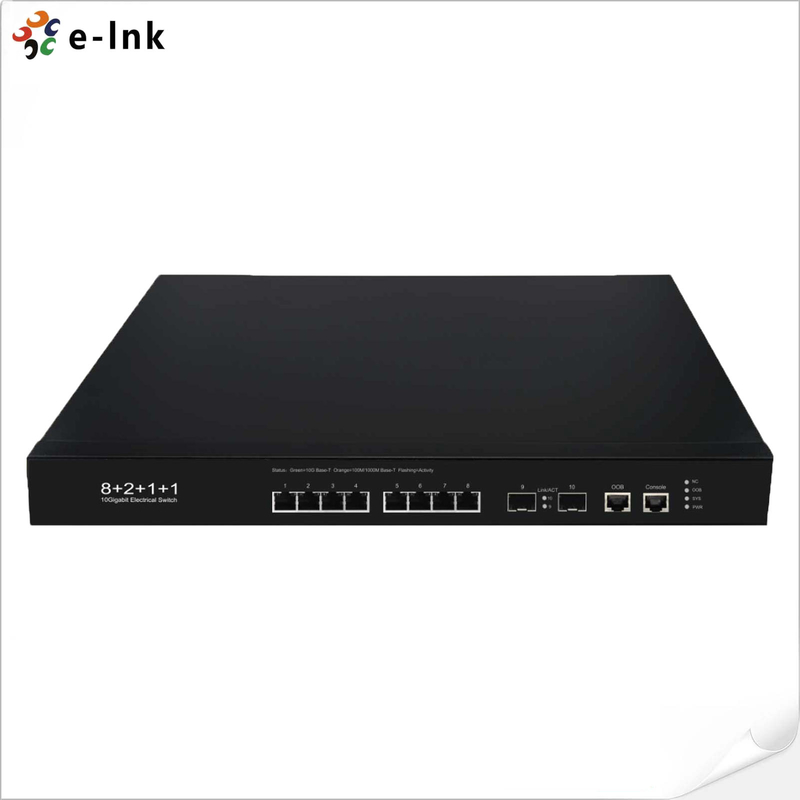

SFP+ Gigabit Poe Network Switch BCM Chip 200Gbps Backplane Bandwidth
L2 Managed 8-Port 1G/10G Base-T + 2-Port 10G SFP+ Gigabit Ethernet Switch
Gigabit Ethernet Switch Advantages
► hardware routing, packet forwarding rate reached 148.8Mpps, L2 / L3 full speed forwarding
► 8 1G/10G RJ45 ports, 2 10G SFP+ optical ports, highest density, meet demand of high-density 10G server access
► Management support with Web, SNMP and Telnet
► support SFP+, also backwards compatible XFP
Technical Indexes
| Security Feature |
IP+MAC+PORT+VLAN binding ARP inspection + DOS prevention + Port protection IP source port protection |
| VLAN |
Port based VLAN 802.1Q VLAN Based IP Based MAC |
| Traffic Control |
Half-duplex control based on the back pressure type Full-duplex control based on the PAUSE frame |
| Port Mirror | Support port mirroring |
| Port Management |
General setting Port counting Configuring port Port trunking Port-isolation |
| System Management |
SNMP v1/v2 Support Console Support TELNET Support WEB |
| Remote Upgrade | Support version upgrading via web Support version upgrading via local |
| Power Supply Features | AC:90V～290V 50~60HZ |
| Power | ≤100W |
Overview
In order to flexibly respond to the network requirements, users can select appropriate 10G ports according to their needs, ensure the stability of the network and the balance of the load link. With high bandwidth and low latency, pipe network. E-link LNK-M8G2F L2 Managed 8+2+1+1 switches located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
Ordering Information
| Item | Description |
| LNK-M8G2F | L2 Managed Ethernet Switch: 8 x 1G/10G RJ45 Ports + 2 x 10G SFP+ Ports |
