L3 Managed 24G 4x1000M SFP Ethernet Switch RISC 400MHz Processor

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-L24G4F

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now

4x1000M SFP Ethernet Switch


RISC 400MHz SFP Ethernet Switch


4x1000M Managed Internet Switch

Backplane Capacity:
Packet Forwarding Rate:
Backplane Capacity:
Packet Forwarding Rate:

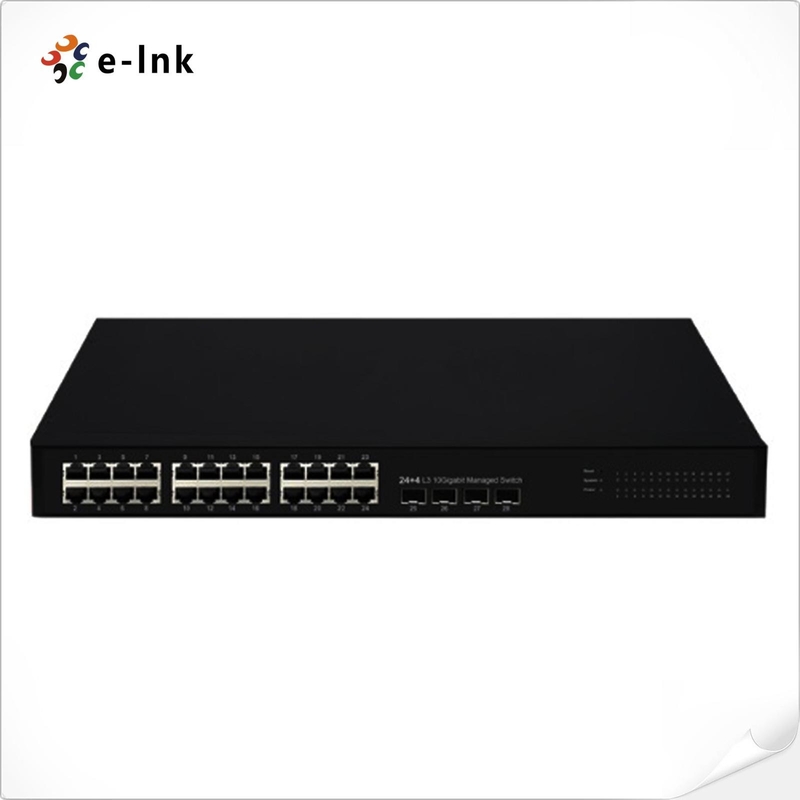

L3 Managed 24G 4x1000M SFP Ethernet Switch RISC 400MHz Processor

L3 Managed 24G 4x1000M SFP Ethernet Switch RISC 400MHz Processor


L3 Managed 24G + 4x1000M SFP Ethernet Switch


Gigabit Ethernet Switch Advantages

► 24 10/100/1000Base-T Ethernet ports, 4 1G SFP ports

► 56Gbps Backplane bandwidth

► 41.664Mbps Packet forwarding rate

► ARM® Cortex™-A9 Processor

► 16MB Flash memory capacity

► 256MB The memory capacity

► 1.5MB Queue buffer

Technical Indexes

The product model 24+4 1 Gigabit Ethernet Switch
Basic characteristics
Fixed port 24 10/100/1000M RJ45 Electrical ports,4 1G SFP ports
Backplane bandwidth 56Gbps
Packet forwarding rate 41.664Mpps
Processor ARM® Cortex™-A9
Chip BCM
Layer L3
Flash memory capacity 16MB
The memory capacity 256MB
Queue buffer 1.5MB
Product characteristics
System Configuration

System information : View software version, CPU utilization, memory utilization

Network Settings: Configure the management address of the device

User Configuration: Configure user name, password

Log configuration : View and download logs

TELNET configuration : TELNET service enabled, disabled

HTTPS configuration : HTTP / HTTPS feature enabled, disabled

Diagnostic test : PING, TRACEROUTE function

Port Configuration

Physical port configuration: Port rate, flow control mode, the maximum frame length

Storm suppression :Configuration broadcast, unknown multicast, unknown unicast pass rate

Port speed limit : Configuration entry, exit rate, burst rate

Port mirroring: Supports up to four mirrors

Link Aggregation: Supports up to 16 static LACPs and supports dynamic LACP

Port isolation : Supports up to eight groups of Uplink, Downlink isolation

Port statistics

Layer 2 Configuration

VLAN configuration : Port working mode, PVID, tag / untag list configuration, VLAN creation


Protocol-vlan : Supports VLANs based on ETHERII, SNAP, LLC frame types


MAC configuration: Static MAC configuration, dynamic MAC query

MSTP configuration: Supports STP, RSTP, and MSTP (802.1s) protocols

IGMP snooping : Supports static multicast configuration

DHCP-snooping : Support static binding, arp dynamic detection, ip source address check

ERPS-Ring configuration

GMRP configuration

The mld-snooping configuration : Supports the ipv6 multicast configuration

The Gvrp configuration : Supports dynamic vlan creation

Layer3 Configuration

The interface configures : he IPv4 address configuration of the Layer 3 interface

ARP configuration : Static ARP add, ARP aging time settings, view system ARP information

VRRP configuration

ND configuration : Static ND configuration

Routing configuration

View routing: Routing information

Static configuration: Adds a static route

RIP configuration

OSPF configuration

BGP configuration

Cyber security

Access Control: Set the access rules for this device

Anti-attack Set : PING message discarded, DOS attack, CPU receives the message rate setting

ACL configuration: Based on MAC and IP ACL configuration, you can configure the ACL to take effect

802.1x authentication configuration

Advanced configuration

QOS configuration :Support SP, WRR, DRR scheduling configuration;

8 send queues per port mapping 802.1p 8 priority;

Support DSCP queue mapping;

The LLDP configuration

SNMP configuration :Supports SNMP v1, v2c, v3

RMON configuration

DHCP Server configuration

DHCP relay configuration

DNS settings

NTP settings

NAT settings

System maintenance

Configuration file management

Save configuration : Configuration file view, upload, download

Reboot the device


Online upgrade

Authentication ROHS authentication

European Community (CE) Electromagnetic Compatibility Directive:This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN60555-2 and the Generic European Immunity Standard EN50082-1.


EN55022(1988)/CISPR-22(1985),class A EN60555-2(1995),class A


IEC1000-4-2(1995),4K V CD, 8KV, AD


IEC1000-4-4(1995),1KV – (power line), 0.5KV – (signal line)

Federal Communications Commission (FCC) statement:This equipment has been tested and found to comply with the limits for a class A computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
Physical characteristics
Appearance size 440x230x44mm
Power characteristic AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power 80W
Indicator lamp Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature 0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation


LNK-L24G4F Gigabit Ethernet Switch 24+4 is standard third-layer non-blocking switch.


Provide 24x10/100/1000Base-T Ethernet ports, 4x1G SFP ports. Based on high-performance chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time, L3 24+4 10Gigabit Ethernet Switch provide a complete IPv4/IPv6 routing, including tunnel and IP multicast. The user can set all kinds of functions of switch through the Web, SNMP and so on. L3 24+4 10 Gigabit Ethernet Switch. suit for the aggregation application of large-scale network and the core application of medium and small-sized network.




L3 Managed 24G 4x1000M SFP Ethernet Switch RISC 400MHz Processor 0

Ordering Information


Item Description
LNK-L24G4F L3 Managed Ethernet Switch: 24x10/100/1000M RJ45 Ports + 4x1G SFP Ports
