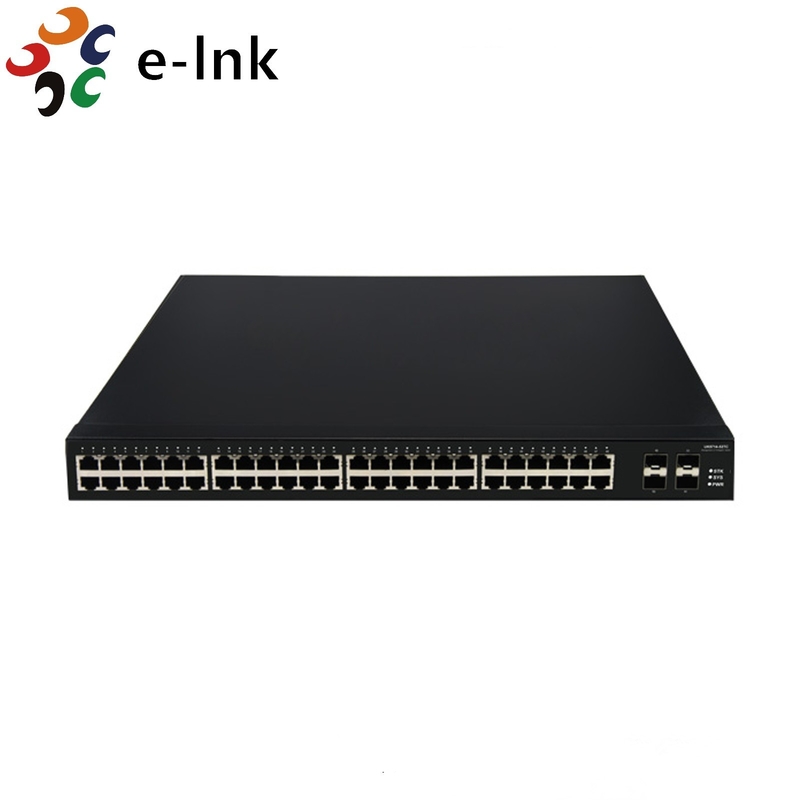

L3 Industrial Managed Power Over Ethernet Switch RISC 400MHz Processor

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-M24G4F

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

RISC 400MHz Power Over Ethernet Switch

,

RISC 400MHz Industrial Managed Switch

,

128Gbps Power Over Ethernet Switch

Backplane Bandwidth:
128Gbps
Packet Forwarding Rate:
95.232Mbps
Processor:
RISC 400MHz
Address Table:
16K
Backplane Bandwidth:
128Gbps
Packet Forwarding Rate:
95.232Mbps
Processor:
RISC 400MHz
Address Table:
16K
Description
L3 Industrial Managed Power Over Ethernet Switch RISC 400MHz Processor

L3 Industrial Managed Power Over Ethernet Switch RISC 400MHz Processor



L3 Managed 24G + 4 10G SFP+ Ethernet Switch



Gigabit Ethernet Switch Advantages

► 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports

► 128Gbps Backplane bandwidth

► 95.232Mbps Packet forwarding rate

► RISC 400MHz Processor

► 8MB Flash memory capacity

► 128MB The memory capacity

► 16K Address table

► Support port-based VLAN
Support MAC-based VLAN
Support 802.1Q labeled VLAN
Support for Super Vlan
Support for Private Vlan

Technical Indexes

Model LNK-M24G4F: L3 24+4 10Gigabit SFP+ Ethernet Switch
Basic characteristics
Fixed port 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports
Backplane bandwidth 128Gbps
Packet forwarding rate 95.232Mbps
Processor RISC 400MHz
Flash memory capacity 8MB
The memory capacity 128MB
Address table 16K
Product characteristics
Spanning tree Support STP, RSTP, MSTP
Support PVST/PVST+
VLAN Support port-based VLAN
Support MAC-based VLAN
Support 802.1Q labeled VLAN
Support for Super Vlan
Support for Private Vlan
Support for the GVRP dynamic VLAN configuration
Support QinQ and flexible QinQ
Support for Voice VLAN
Flow control Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Support CAR function
Broadcast control

Restraining broadcast storm,

stop sending so long as reaching a critical point

multicast control IGMP Snooping multicast message automatic monitoring
multicast routing IGMP v1/v2/v3, MLDv2
PIM-SM, OLINK&PIM-DM
DVMRP (Distance Vector Multicast Routing Protocol)
GMRP (multicast dynamic registration protocol)
Port binding Each group of a maximum of 8, while support 128 group
LACP dynamic or static polymerization
Port mirroring Support based on flow classification mirroring and port mirroring
Stacked Stacked 16 hard, soft stacking 32
Using clustering techniques, with a unified centralized management of IP address to do address resource saving
Routing management Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function
Strategy routing Support based on IP strategy routing
The proxy function Support Proxy ARP, DNS Proxy
Redundancy backup Support for VRRP, HSRP Hot Standby Router Protocol
Characteristics of DHCP DHCP Server, DHCP Client and support DHCP relay
Function of NAT Support the static or dynamic NAT address translation function
Safety characteristics

IEEE 802.1x port certification, PKI certification
Port Security (Port Security) function

Hardware support for IP ACL ACL ACL, MAC, Vlan
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication
Remote RADIUS, TACACS+ certification

User classification management and password protection

Net shield technology
Safety control technology
Policy control list

Quality of service IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
WRED, WFQ, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
RTS
Network management SNMP v1/v2/v3
RMON (1,2,3,9 group)
Telnet
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Appearance size 440x230x44(mm)
Power characteristic AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power 80W
Indicator lamp Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature

0-50 ℃ operation,

-40-70 ℃ preservation,

0-90% no condensation




Overview

E-link L3 24+4 10G SFP+ Ethernet Switch is standard third-layer non-blocking switch.



Provide 24x10/100/1000Base-T Ethernet ports, 4x10G SFP+ ports. Based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time, L3 24+4 10Gigabit Ethernet Switch provide a complete IPv4/IPv6 routing, including tunnel and IP multicast. The user can set all kinds of functions of switch through the Web, SNMP and so on. L3 24+4 10 Gigabit Ethernet Switch. suit for the aggregation application of large-scale network and the core application of medium and small-sized network.



L3 Industrial Managed Power Over Ethernet Switch RISC 400MHz Processor 0

Ordering Information



Item Description
LNK-M24G4F L3 Managed Ethernet Switch: 24x10/100/1000M RJ45 Ports + 4x10G SFP+ Ports
