Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IPOE-30W
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector |
Product Model: |
LNK-IPOE-30W |
Input Voltage: |
90~264VAC |
Output Voltage: |
30W |
Product Name: |
30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector |
Product Model: |
LNK-IPOE-30W |
Input Voltage: |
90~264VAC |
Output Voltage: |
30W |

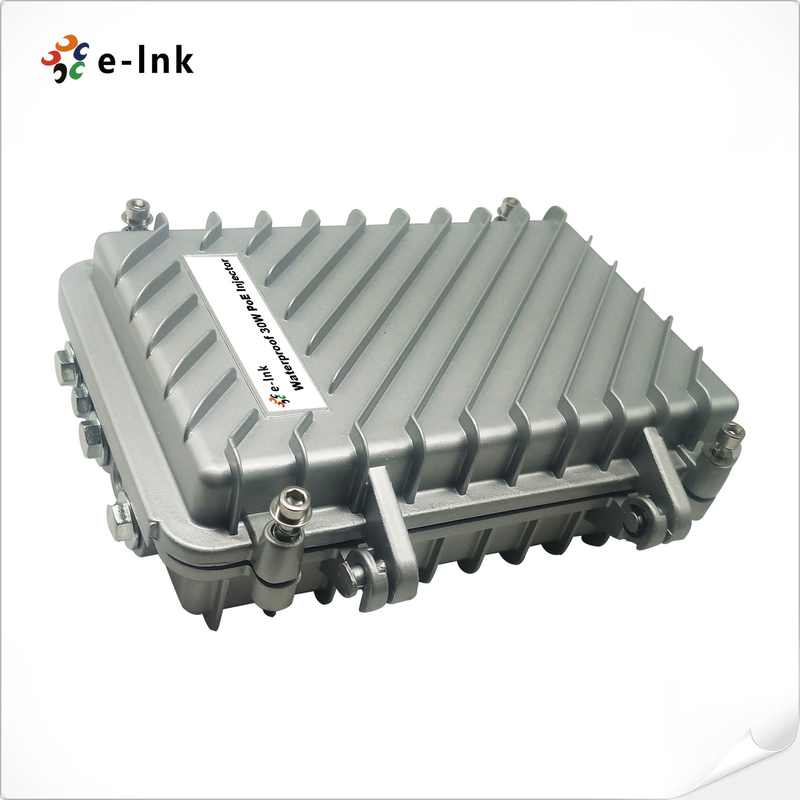

30W Industrial PoE Injector Adapter IP67 Waterproof 802.3at PoE+ Injector
30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector
30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector Advantages
► Support 10/100/1000Base-TX
► IEEE 802.3af/at compliant
► Outdoor using, power directly
► PoE output up to 30W
► Power pins: 4/5(+),7/8(-)
► Provide signal and PoE output, lightning protection 6KV
► Wide temperature design: -40℃ to +80℃
► Metal casing, waterproof, dustproof, IP67
► Sealing gasket past extension, bearing, corrosion, aging test
► Plug-and-play installation
| Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T |
| Connector: | 2x M22 Shielded RJ-45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Input & Output | |
| Input Power: | 90~264VAC |
| Output PoE Power: | 30W |
| Power Pins: | 4/5(+),7/8(-) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | M22 Shielded RJ-45 |
| Max. Power per Port: | 30W Max |
| AC Surge Protection | |
| Line-Earth 1.2/50us (8/20us): | 6KV |
| Line-Line 1.2/50us (8/20us): | 4KV |
| PoE Surge Protection | |
| Protected line: | 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): | 6KV |
| Differential mode surge protection (10/700us): | 1.5KV |
| Mechanical | |
| Dimensions (LxWxH): | 304 x 184 x 75 mm (inner size) |
| Weight: | 3.6Kg |
| Casing: | Aluminum Case |
| Color: | Silver |
| Mounting Options: | Pole-Mount |
| Regulatory Approvals | |
| Safety Approvals: UL, CE | |
| EMI: FCC CFR47 Part 15, EN55024, EN55032 | |
|
EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
|
Immunity: IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
|
Overview
E-link LNK-IPOE-30W Industrial IP67-rated Single-port 802.3at PoE Injector provides a maximum of up to 30 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3at PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.
With industrial-level IP67-rated aluminum case, the LNK-IPOE-30W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.
LNK-IPOE95W is designed for outdoor using, which works with 90-264VAC input. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. It is especially suitable for working in complex power situations. It is easy to install with installation kit LNK-POT-MBK, no need to open equipment.
Ordering Information
| Model | Description |
| LNK-IPOE-30W | 30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector |
| Mounting Options | ► Pole-mounted (installation kit needs to be purchased separately) |
| LNK-POT-MBK | Pole-Mount installation kit |
