Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-WP901
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
Outdoor Waterproof Industrial 95W Gigabit PoE Injector With 6KV Surge Protection |
Product Model: |
LNK-WP901 |
Input Voltage: |
48~57VDC |
Output Voltage: |
IEEE802.3bt 95W |
Product Name: |
Outdoor Waterproof Industrial 95W Gigabit PoE Injector With 6KV Surge Protection |
Product Model: |
LNK-WP901 |
Input Voltage: |
48~57VDC |
Output Voltage: |
IEEE802.3bt 95W |

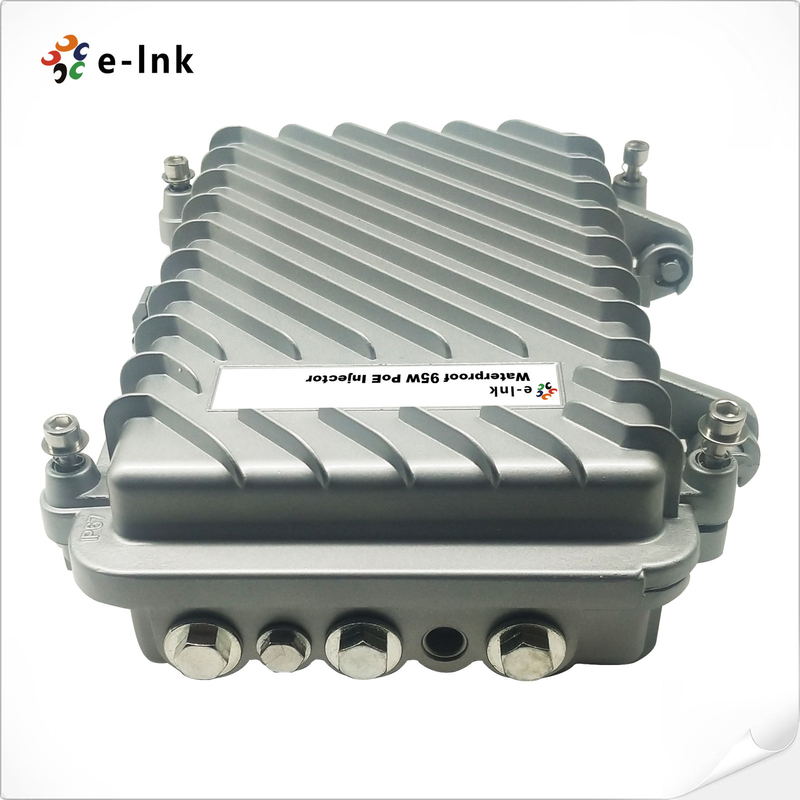

Outdoor 95W Gigabit PoE Injector Adapter With 6KV Surge Protection
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Advantages
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
| Parameter | Specifications |
| Standard |
IEEE802.3 10Base-T Ethernet |
| Input & Output |
Input : 48~57VDC |
| Working Environment |
Operating Temperature: -40℃ to 80℃ |
| AC Surge Protection |
Common mode surge protection(10/700us): 6KV |
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 |
| Mechanical Characteristics | Case: Metal |
| Color: Gray | |
| Mounting: Pole-mounted | |
| IP Rated: IP67 | |
| Size (LxWxH): 260mm X 210mm X 80mm | |
| Weight: 1.5KG | |
| Safety Approvals | CE, FCC, IP67 |
| EMI | FCC CFR47 Part 15, EN55024, EN55032 |
| EMS |
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) |
| Immunity |
IEC60068-2-6(Vibration) |
Overview
LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
Ordering Information
| Model | Description |
| LNK-WP901 | Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection |
