Full Duplex Half duplex Poe Powered Media Converter 2 port SFP modules

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC1200GP90-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Industrial Media Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Full Duplex Poe Powered Media Converter

,

Half Duplex PoE Media Converter

,

SFP Modules Poe Powered Media Converter

Keywords:
Media Converter 2 Port PoE Industrial
Input Power:
48~57VDC, 4-pin Terminal Block
PoE Port:
2 Port 10/100/1000Mbps 802.3bt
Fiber Port:
1 Port 1000Mbps SFP
Mounting Options:
DIN-Rail / Wall-mount
Operating Temperature:
-40°C To 75°C (-40°F To 167°F)
Keywords:
Media Converter 2 Port PoE Industrial
Input Power:
48~57VDC, 4-pin Terminal Block
PoE Port:
2 Port 10/100/1000Mbps 802.3bt
Fiber Port:
1 Port 1000Mbps SFP
Mounting Options:
DIN-Rail / Wall-mount
Operating Temperature:
-40°C To 75°C (-40°F To 167°F)
Description
Full Duplex Half duplex Poe Powered Media Converter 2 port SFP modules

Full Duplex Half Duplex Poe Powered Media Converter 2 Port SFP Modules



Industrial Din Rail PoE Media Converter

2 Port 10/100/1000T 802.3bt 90W PoE to 1 Port 100/1000X SFP


2 Port Media Switch 90W PoE Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)



2 Port 802.3bt PoE Media Converter Overview

LNK-IMC1200GP90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.



Industrial PoE Media Converter 2 Port Technical Indexes

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Input Power:

48~57VDC, 4-pin terminal block

Power Consumption:

185W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Mounting Options:

DIN-Rail / Wall-mount

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

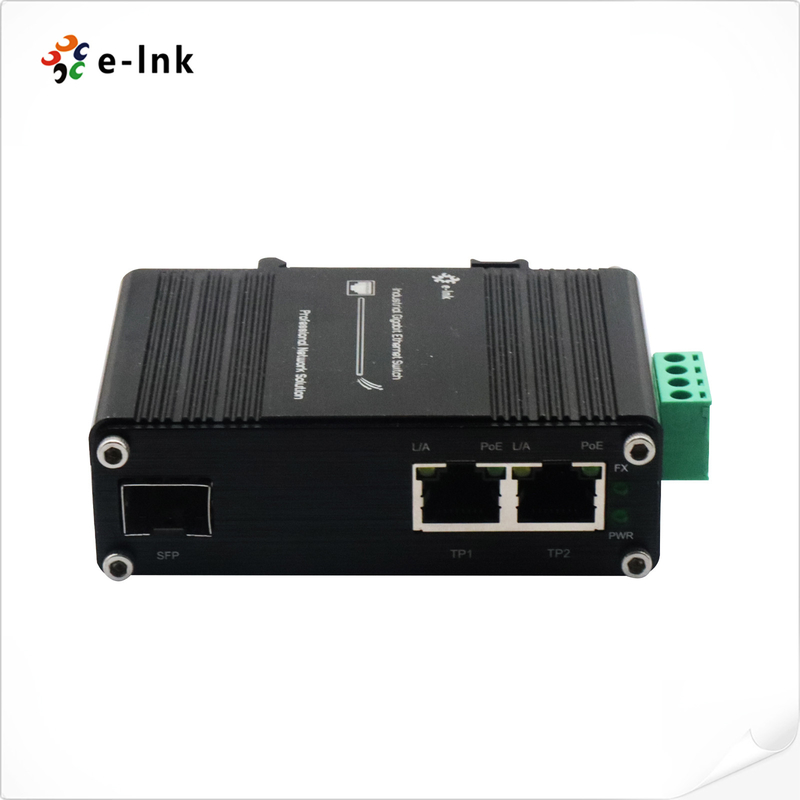

Full Duplex Half duplex Poe Powered Media Converter 2 port SFP modules 0

Full Duplex Half duplex Poe Powered Media Converter 2 port SFP modules 1

Industrial 2 Port Gigabit PoE Media Converter Ordering Information

Model

Description

LNK-IMC1200GP90-SFP

Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
