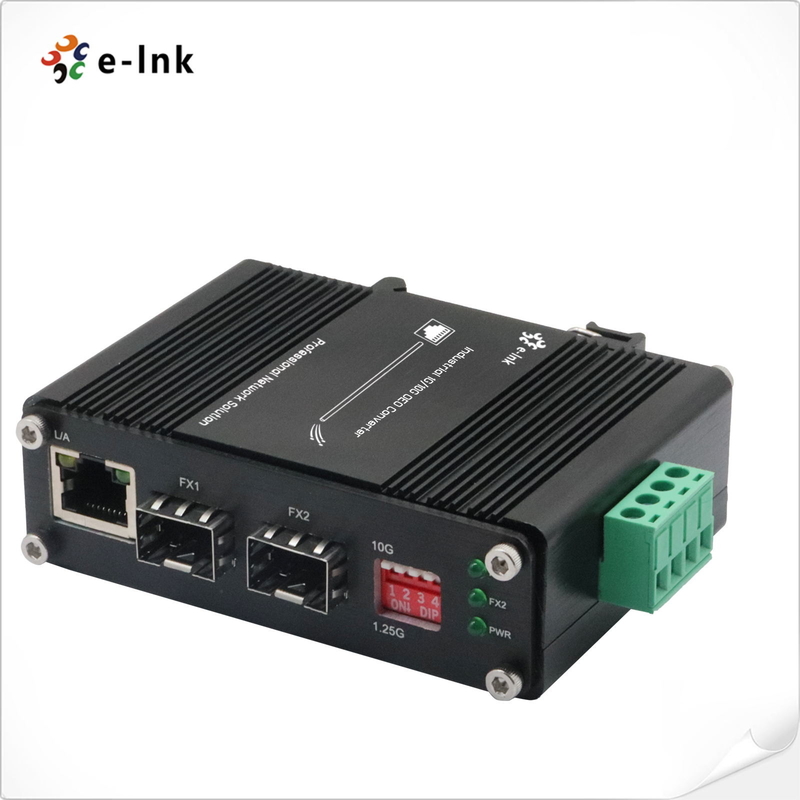

Industrial 10G Ethernet Media Converter With 3R Repeater Equipment

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: ETH-IMC2402-OEO

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Media Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Industrial 10G Ethernet Media Converter

,

3R Repeater Ethernet Media Converter

,

DIP Media Converter Fiber To Ethernet

Keywords:
Industrial 10G Media Converter
Input Power:
12~48VDC Redundant Power
Equipment Function:
3R Repeater
Interface Type:
SFP+ To SFP+
DIP Switch:
4-digit DIP Switch Function
Installation:
DIN-Rail Mount
Keywords:
Industrial 10G Media Converter
Input Power:
12~48VDC Redundant Power
Equipment Function:
3R Repeater
Interface Type:
SFP+ To SFP+
DIP Switch:
4-digit DIP Switch Function
Installation:
DIN-Rail Mount
Description
Industrial 10G Ethernet Media Converter With 3R Repeater Equipment

Industrial 10G Ethernet Media Converter With 3R Repeater Equipment



Industrial 10G OEO Media Converter Din Rail Mounting

1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function


10G OEO Media Switch Advantages

► 3R function (Regeneration, Reshaping, Re-timing)

► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function

► DIP Switch supports 1.25G/10G fiber data rate switching

► Can be as 1G Ethernet Media Converter if using Ethernet

► -40°C to 80°C (-40°F to 176°F) operating temperature



Media Converter SFP+ To SFP+ Overview

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.

It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.



10G Industrial Fiber Media Converter Technical Indexes

Protocols

8.5G Fiber Channel

SONET OC-192, SDH STM-64 (9.95Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

OTN OTU-2 (G.709) (10.70Gbps)

10G LAN with 255/237 FEC coding (11.09Gbps)

10G Fiber Channel (11.32Gbps)

10G POS

Transmission Distance

SFP+ module: up to 80km

Ethernet Media Converter Specifications

Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Work Mode

10/100/1000BASE-T to 1000BASE-SX/LX

Port Type

SFP to RJ45

Network Cables

Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

1.25G/10G

ON - 1.25~8.5G

OFF - 10.3G or 14.025G

SW 2

Reserved

ON - Reserved

OFF - Reserved

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

Industrial 10G Ethernet Media Converter With 3R Repeater Equipment 0

Industrial 10G Ethernet Media Converter With 3R Repeater Equipment 1

Industrial 10G OEO Media Converter Ordering Information

Model

Description

ETH-IMC2402-OEO

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
