Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs

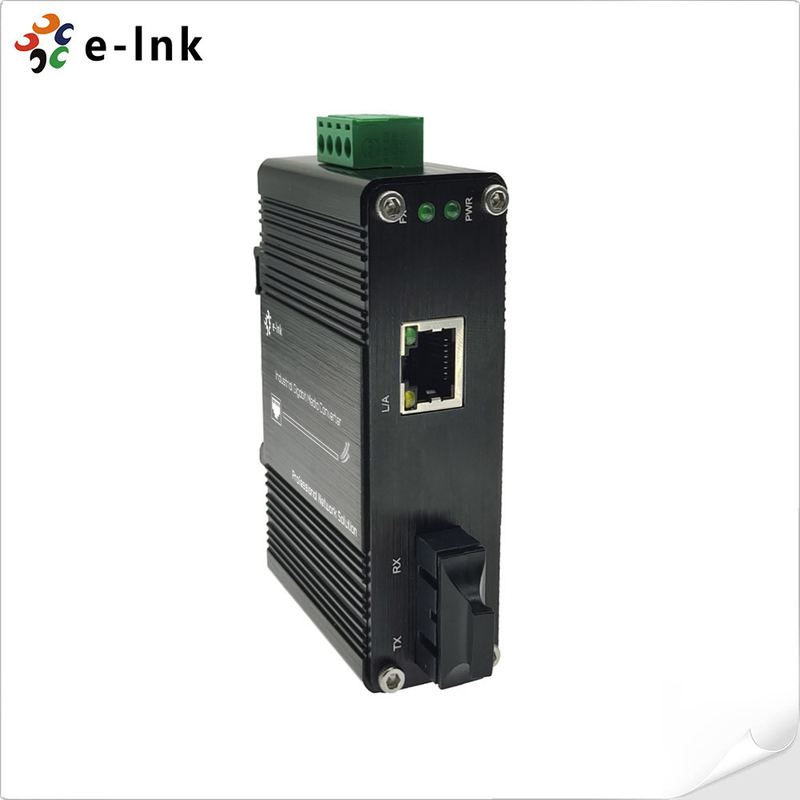

Model Number: LNK-IMC1100-20
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: standard export package
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Packet Buffer Memory: |
128K Bits |
Max Packet Length: |
1522 Bytes |
Address Table Size: |
1K MAC Addresses |
Connector: |
1x RJ45 |
Input Power: |
12~48VDC, 2-pin Terminal Block |
Packet Buffer Memory: |
128K Bits |
Max Packet Length: |
1522 Bytes |
Address Table Size: |
1K MAC Addresses |
Connector: |
1x RJ45 |
Input Power: |
12~48VDC, 2-pin Terminal Block |
Media Converter Advantages
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Full duplex and flow control | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 3W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| SPD: | Ethernet Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Application
Ordering Information
| Model | Description |
| LNK-IMC1100 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC |
| LNK-IMC1100-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC |
| LNK-IMC1100S-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
