Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-DVI-1D1BA-20
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiation
Packaging Details: DVI Fiber Extender Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 2000 pairs per month
Product Name: |
DVI Fiber Converter |
Video Resolution: |
1920*1200P 60Hz |
Connector Type: |
SFP Model – LC Connector |
Transmission Mode: |
Single Mode Single Fiber |
Transmission Distance: |
Up To 20KM |
Operating Temperature: |
-20℃ ~ +70℃ |
Product Name: |
DVI Fiber Converter |
Video Resolution: |
1920*1200P 60Hz |
Connector Type: |
SFP Model – LC Connector |
Transmission Mode: |
Single Mode Single Fiber |
Transmission Distance: |
Up To 20KM |
Operating Temperature: |
-20℃ ~ +70℃ |

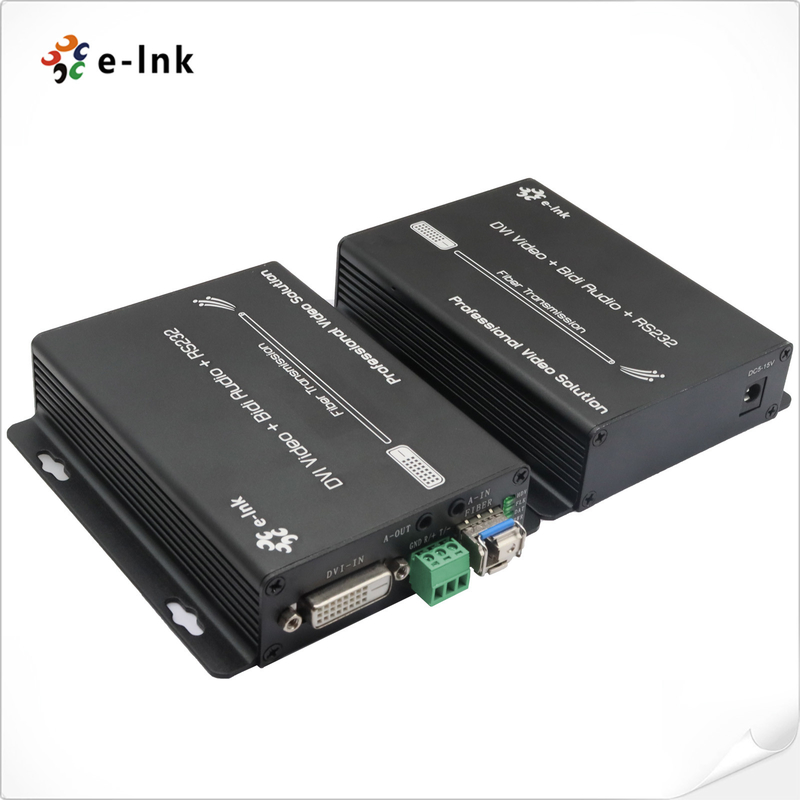

The LNK-DVI-1D1BA Fiber optic extender is a great solution for extending DVI signals over long distances. It provides high resolution support, up to 1080P, as well as KVM, RS232, GPIO and external audio transmission. This extender's stability and security guarantees it can be used in a wide range of applications. It is reliable and produces high-quality results.
This product supports up to 20km long-distance transmission of DVI video signals, RS232 and audio over a single fiber cable at resolutions up to 1920*1200@60Hz, and special support for 1600*1200@60HZ. Moreover, it is compliant with the DVI 1.0 and HDCP 1.2 standards, and has a highly compatible and automatic adjustment system that ensure a smooth, clear and stable image. It also has a built-in ESD protection system. Lastly, users can enjoy a simple and hassle-free installation process as it is a plug and play unit.
| Parameter | Description | |
|
Video
|
Standards | DVI 1.0 and HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Compliant |
1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, 720P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
| Connector | Female DVI-D | |
| Impedance | 100Ω | |
| DVI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz | |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Output | |
| Receiver | 1Ch Input + 1Ch Output | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 | |
| Data Bits | 8 bits | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Multi-mode fiber: <500M Single-mode fiber: 0~80km |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 120 x 83 x 28 (mm) | |
DVI Fiber Converter Technical Support and Service
We provide customer service and technical support for our DVI Fiber Converter products. Our technical support staff is available to answer any questions you may have about the product and provide assistance with installation and troubleshooting. We also offer a warranty on our products, so you can be sure your DVI Fiber Converter will last.
We strive to provide the best customer service and support to our customers. If you have any problems with our products, please do not hesitate to contact us. Our customer service team is available to answer any questions you may have and provide assistance with any issues you may have.
We also offer a range of online resources for our DVI Fiber Converter products. Our website provides detailed product information, tutorials, and helpful tips to help you get the most out of your product. You can also download the latest software and firmware updates for your DVI Fiber Converter.
If you need assistance with any of our products, please don't hesitate to contact us. Our customer service representatives are available to assist you with any questions or concerns you may have.
Packaging and Shipping for DVI Fiber Converter:
The DVI Fiber Converter is packaged in an ESD bag and put into a static shielding bag. It is then placed in a box with bubble wrap for protection. The box is labeled with the product name, model number, and other relevant information. The box is then sealed and shipped to its destination.
| Model | Description |
|
LNK-DVI-1D1BA
|
1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multimode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-DVI-1D1BA-20 | 1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
