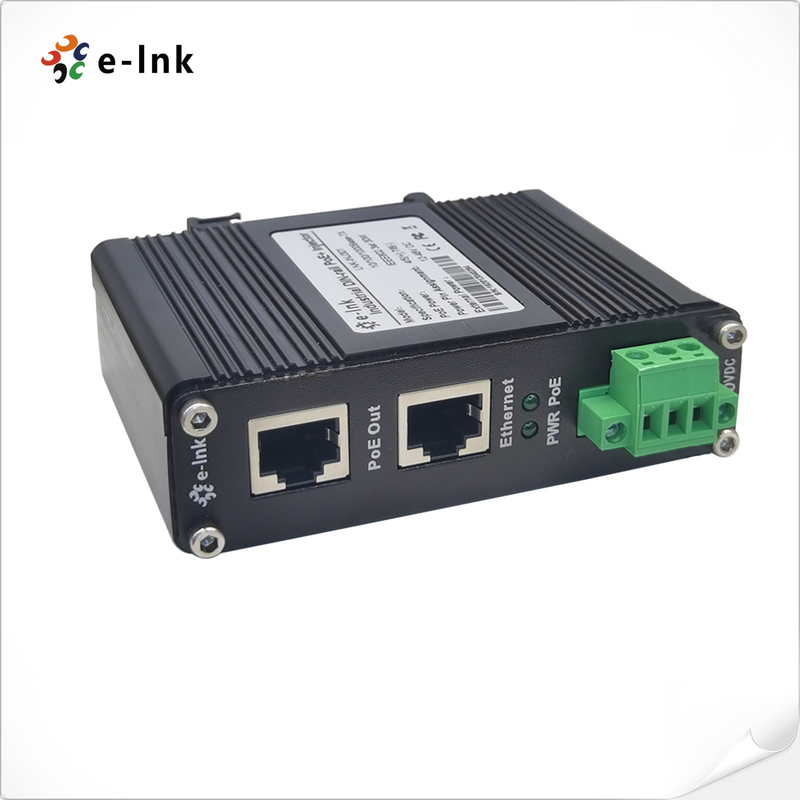

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Name: 80~320VDC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: The LNK-INJ832
Price: 151.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: The LNK-INJ832

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $4.9-299

Packaging Details: PoE Injector Adapter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial Gigabit PoE+ Injector, 320VDC PoE+ Injector


Key Word:	PoE Injector Adapter	Input Power:	80~320VDC (Terminal Block)
Weight:	0.25Kg	Dimensions (WxDxH）:	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 80°C	Mounting Options:	DIN-Rail / Wall-mount

Key Word:	PoE Injector Adapter
Input Power:	80~320VDC (Terminal Block)
Weight:	0.25Kg
Dimensions (WxDxH）:	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 80°C
Mounting Options:	DIN-Rail / Wall-mount

Description

80~320VDC Power Input Industrial Gigabit PoE+ Injector

PoE Injector Adapter Advantages

► 80~320VDC wide-range input voltage

► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

► IEEE 802.3af/at compliant, supports a full 30 watt output

► Provides slim size with IP40 metal mechanism

► Support DIN-Rail & Wall-mount installation.

Technical Indexes

Electrical and Mechanical
Input Power:	80~320VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status

Overview

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE

device such as camera and access point with a non PoE LAN switch within the distance of 100m.

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Ordering Information

Model	Description
LNK-INJ832	80~320VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
