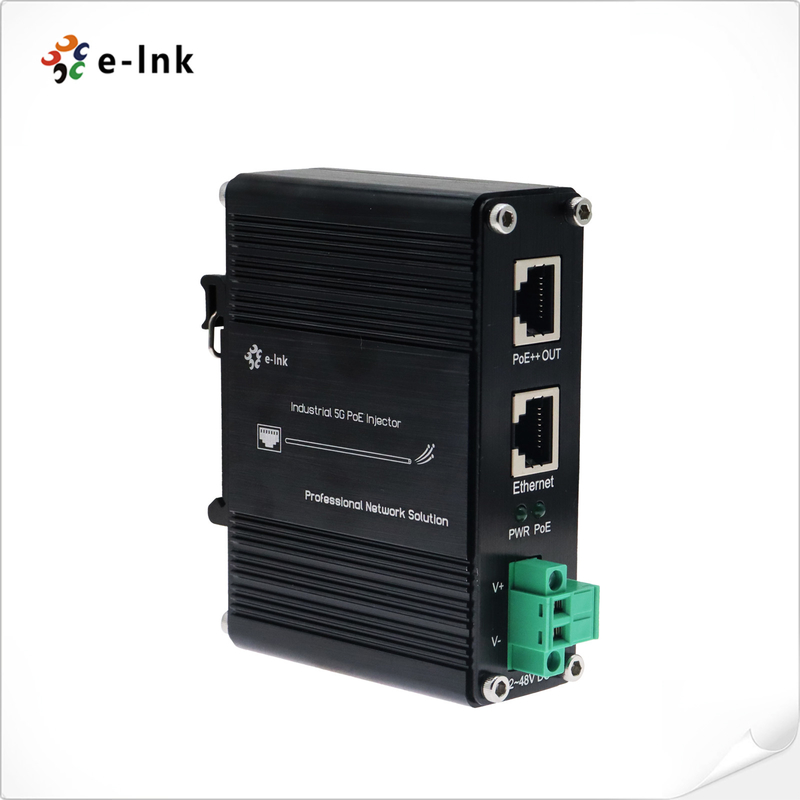

12~48V DC Power Input Industrial 5G 60W PoE Injector

Name: 12~48V DC Power Input Industrial 5G 60W PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: The LNK-INJ501-60
Price: 151.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: The LNK-INJ501-60

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $4.9-299

Packaging Details: PoE Injector Adapter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      5G PoE Injector, 60W PoE Injector, Industrial PoE Injector


Key Word:	PoE Injector Adapter	Input Power:	12~48VDC (Terminal Block)
Power Pin:	4/5(+), 7/8(-)	Dimensions (WxDxH）:	95 X 70 X 30 Mm
Weight:	0.25Kg	Mounting Options:	DIN-Rail / Wall-mount

Key Word:	PoE Injector Adapter
Input Power:	12~48VDC (Terminal Block)
Power Pin:	4/5(+), 7/8(-)
Dimensions (WxDxH）:	95 X 70 X 30 Mm
Weight:	0.25Kg
Mounting Options:	DIN-Rail / Wall-mount

Description

12~48V DC Power Input Industrial 5G 60W PoE Injector

PoE Injector Adapter Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)

Overview

The LNK-INJ501-60 product is a Hardened 5G High Power 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE

device such as camera and access point with a non PoE LAN switch within the distance of 30m.

12~48V DC Power Input Industrial 5G 60W PoE Injector

Ordering Information

Model	Description
LNK-INJ501-60	12~48VDC Power Input Industrial 5G 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
