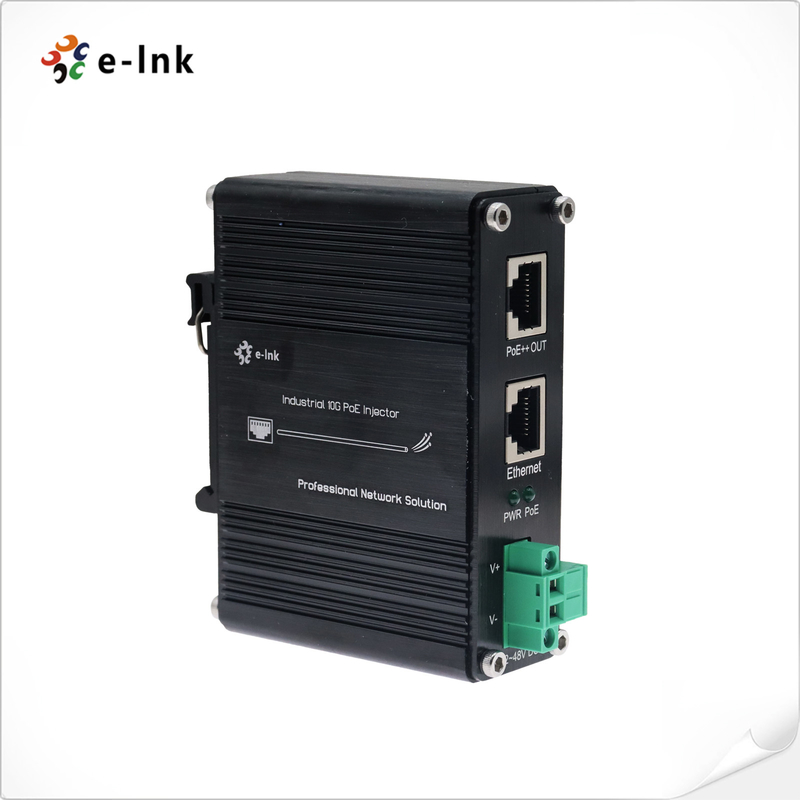

Industrial 10G 95W 802.3bt PoE++ Injector (12~48VDC)

Name: Industrial 10G 95W 802.3bt PoE++ Injector (12~48VDC)
Brand: E-link China Technology Co.,LTD
SKU: The LNK-INJ601-90
Price: 151.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: The LNK-INJ601-90

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $4.9-299

Packaging Details: PoE Injector Adapter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      12~48VDC PoE++ Injector, Industrial 10G PoE++ Injector, 802.3bt PoE++ Injector


Key Word:	PoE Injector Adapter	Input Power:	12~48VDC (Terminal Block)
Dimensions (WxDxH）:	95 X 70 X 30 Mm	Weight:	0.25Kg
Mounting Options:	DIN-Rail / Wall-mount	Casing:	IP40 Aluminum Case

Key Word:	PoE Injector Adapter
Input Power:	12~48VDC (Terminal Block)
Dimensions (WxDxH）:	95 X 70 X 30 Mm
Weight:	0.25Kg
Mounting Options:	DIN-Rail / Wall-mount
Casing:	IP40 Aluminum Case

Description

Industrial 10G 95W 802.3bt PoE++ Injector (12~48VDC)

PoE Injector Adapter Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000/2.5G/5G/10G Base-TX

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)

Overview

The LNK-INJ601-90 product is an Industrial hardened single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G/5-

G/10G Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as

camera and access point with a non PoE LAN switch within the distance of 30m.

Industrial 10G 95W 802.3bt PoE++ Injector (12~48VDC)

Ordering Information

Model	Description
LNK-INJ601-90	10G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
