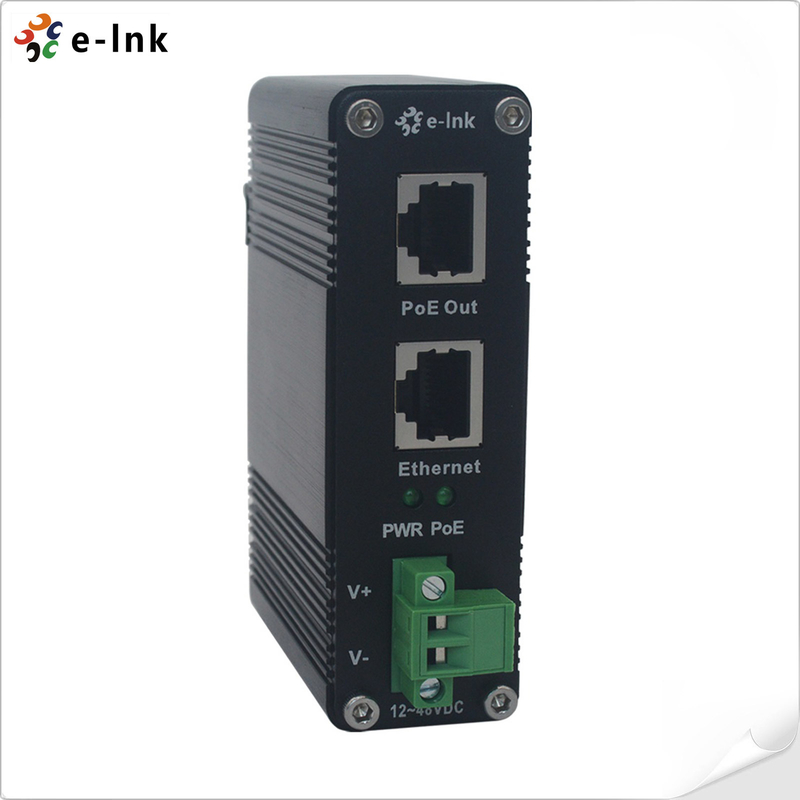

12~48V DC Power Input Industrial Gigabit PoE+ Injector

Name: 12~48V DC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301-30
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-INJ301-30

Document: E-link LNK-INJ301-30 Indust....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Temperature:	-40°C To 80°C (-40°F To 176°F)	Mounting Options:	DIN-Rail / Wall-mount
Poe Port:	8 Port 10/100/1000T 802.3at	Vlan Number:	4K
Fiber Ports:	4 X 1000BASE-SFP Ports	Operating Temperature:	-40°C To 75°C

Temperature:	-40°C To 80°C (-40°F To 176°F)
Mounting Options:	DIN-Rail / Wall-mount
Poe Port:	8 Port 10/100/1000T 802.3at
Vlan Number:	4K
Fiber Ports:	4 X 1000BASE-SFP Ports
Operating Temperature:	-40°C To 75°C

Description

12~48V DC Power Input Industrial Gigabit PoE+ Injector

12~48V DC Power Input Industrial Gigabit PoE+ Injector
Industrial Ethernet Switch Advantages:

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 30 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

Overview

The LNK-INJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)

Application

12~48V DC Power Input Industrial Gigabit PoE+ Injector 0

Ordering Information

Model	Description
LNK-INJ301	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
