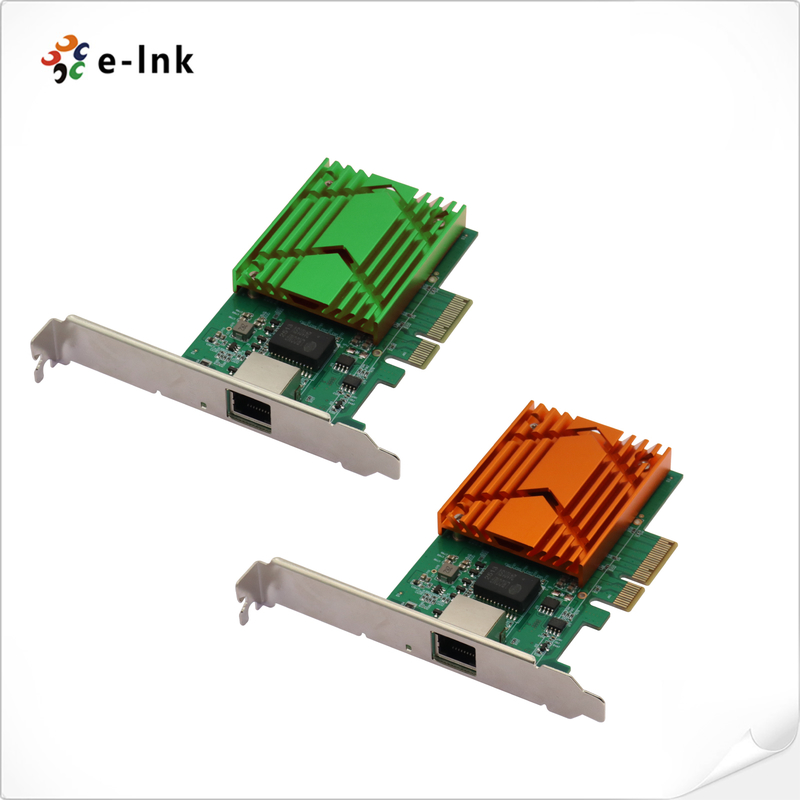

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

Name: PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Brand: E-link China Technology Co.,LTD
SKU: LNK-NIC-10GE
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-NIC-10GE

Document: E-link LNK-NIC-10GE 10G Eth....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Baffle Height:	Half & Full Height	Power Consumption:	4.7W
Bus Type:	PCIe V3.0 X4，compatible With X8, X16	Data Rate Per Port:	10/100/1000M/2.5G/5G/10Gbps Data Rate
Operating Temperature:	0℃ To 55℃ (32℉ To 131℉)	Size:	125 X 125 X 20 Mm
Weight:	90g

Baffle Height:	Half & Full Height
Power Consumption:	4.7W
Bus Type:	PCIe V3.0 X4，compatible With X8, X16
Data Rate Per Port:	10/100/1000M/2.5G/5G/10Gbps Data Rate
Operating Temperature:	0℃ To 55℃ (32℉ To 131℉)
Size:	125 X 125 X 20 Mm
Weight:	90g

Description

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Advantages

► PCIE x 4 Hardware Interface.

► Support systems: Windows, Linux, Ubuntu, etc

► Windows 7/8/8.1/10

► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

► Linux Stable Kernel version 2.6.32/3.x/4.x or later

► Linux CentOS/RHEL 6.5 / 7.x or later

► Ubuntu 14.x/15.x/16.x or later

► VMware ESX/ESXi 4.x/5.x/6.x or later

► 10/100/1000M/2.5G/5G/10Gbps data rate

Technical Indexes

Transmission medium	Copper
Copper Type	10GBase-T:Cat 7 or higher up to 30m 5GBase-T:Cat 7 or higher up to 30m 2.5GBase-T:Cat 6A or higher up to 100m 1GBase-T:Cat 6 or higher up to 100m 100MBase-T:Cat 6 or higher up to 100m
Baffle Height	Half & Full height
Power Consumption	4.7W
OS Support	Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 Linux Stable Kernel version 2.6.32/3.x/4.x or later Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v3.0 x4,compatible with x8, x16
Data rate per port	10/100/1000M/2.5G/5G/10Gbps data rate
Connector	1*10G RJ45
Operating Temperature	0℃ to 55℃ (32℉ to 131℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃
Size	125 x 125 x 20 mm

Overview

LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.

Application
PCIe x4 Single-port RJ45 10G Ethernet Network Adapter 0
Ordering Information

Model	Description
LNK-NIC-10GE	PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
