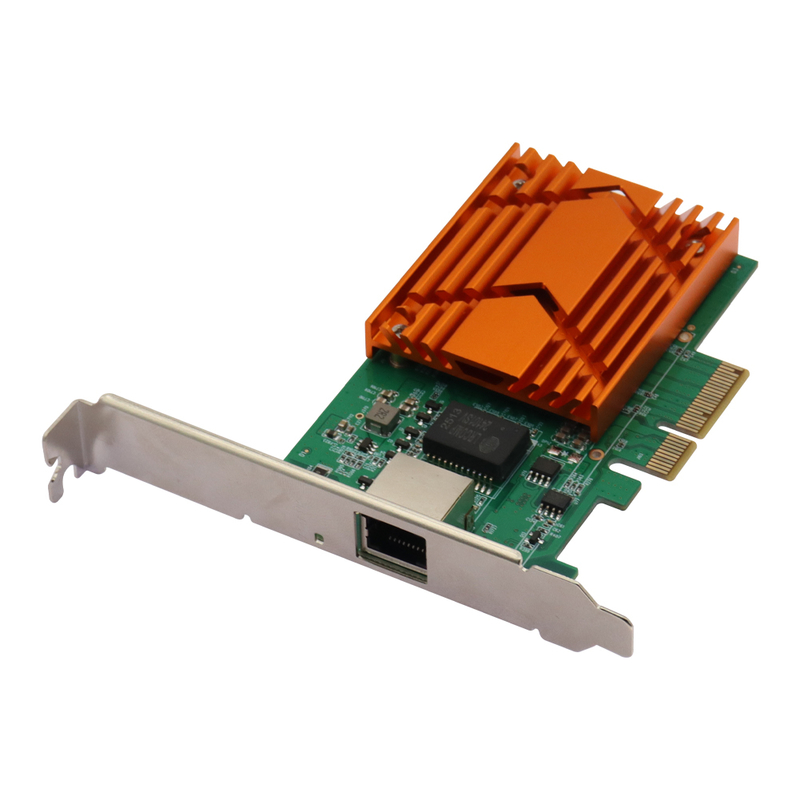

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter  Advantages

► PCIE x 4 Hardware Interface.

► Support systems: Windows, Linux, Ubuntu, etc

► Windows 7/8/8.1/10

► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

► Linux Stable Kernel version 2.6.32/3.x/4.x or later

► Linux CentOS/RHEL 6.5 / 7.x or later

► Ubuntu 14.x/15.x/16.x or later

► VMware ESX/ESXi 4.x/5.x/6.x or later

► 10/100/1000M/2.5G/5G/10Gbps data rate

► Jumbo frame support up to 16 KB.

► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.

► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.

► Brown and Green color optional

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter  Overview

LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.

The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of 100 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling. The LNK-NIC-10GE is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASET, 5GBASE-T,10GBASE-T,1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support.

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter Technical Indexes

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter  Ordering Information
