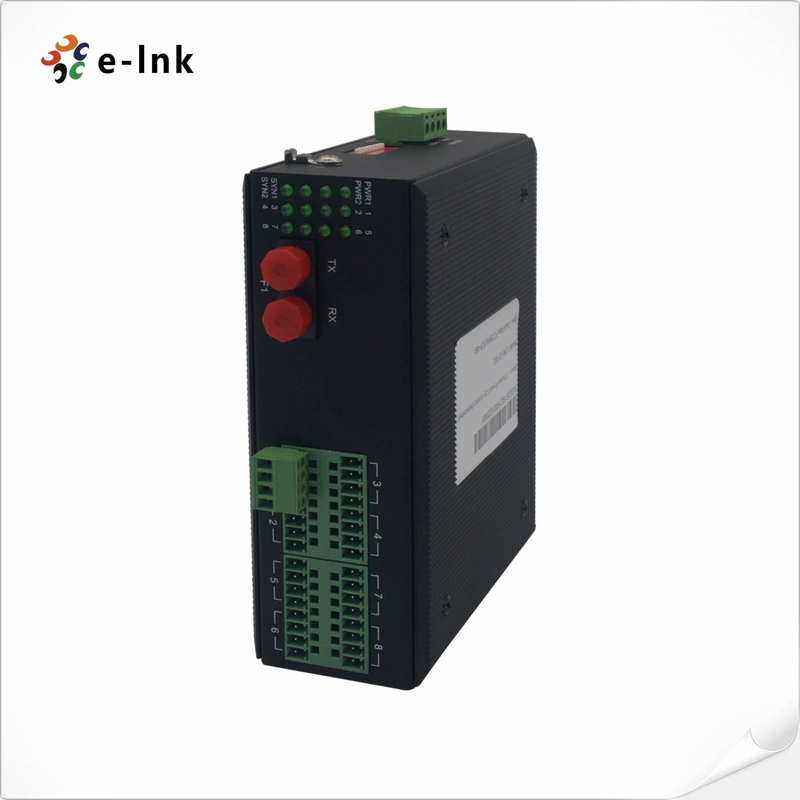

Industrial 1-2Ch CAN Bus to Fiber Optic Converter

Name: Industrial 1-2Ch CAN Bus to Fiber Optic Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-FCAN01
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-FCAN01

Document: E-link LNK-FCAN Industrial ....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimensions (LxWxH)::	133mm×120mm×50mm	Weight:	0.75KG
Installation:	35mm DIN-Rail, Wall Mounting	Casing:	IP40 Protection, Aluminum Case
Working Temperature:	-40°C ~ 85°C	Fiber Type:	FC/SC/ST (FC In Default)
Maximum Transmission Distance:	2Km

Dimensions (LxWxH)::	133mm×120mm×50mm
Weight:	0.75KG
Installation:	35mm DIN-Rail, Wall Mounting
Casing:	IP40 Protection, Aluminum Case
Working Temperature:	-40°C ~ 85°C
Fiber Type:	FC/SC/ST (FC In Default)
Maximum Transmission Distance:	2Km

Description

Industrial 1-2Ch CAN Bus to Fiber Optic Converter

Industrial 1-2Ch CAN Bus to Fiber Optic Converter

Product Advantages

· Integrated circuits based on independent intellectual property rights;

· Provide 1-2 CAN bus interfaces and 1 optical port;

· CAN data is fully transparent, baud rate is self-adaptive, no setting is required

· CAN interface maximum number of nodes 128; CAN interface maximum rate 0-1Mbps;

· The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards;

· Support wide range AC / DC input, support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection

Technical Indexes

Optical Fiber
Multi-mode Fiber:50/125um, 62.5/125um
Maximum transmission distance	2Km
Wavelength	850/1310nm
Transmitting power	Multimode 850nm: -18dBm Multimode 1310nm: -25dBm
Receiver sensitivity	-40dBm~-28dBm
Fiber Type	FC/SC/ST (FC in default)
Single-mode Fiber: 9/125um
Transmission distance	20~120Km
Wavelength	1310/1550nm
Transmitting power	≥-9dBm
Receiver sensitivity	-40dBm~-28dBm
Fiber Type	FC/SC/ST (FC in default)
CAN Bus Interface
Protocol	Comply with international CAN1.0, CAN2.0 standards
No. of Ports	1 (LNK-FCAN01) or 2 (LNK-FCAN02)
Rate	0~1000Kbps
Physical Interface	Industrial Terminal
CAN Signals	CAN_H, CAN_L, GND
Power Supply
Power input	AC7V~50C; DC9-55V
Power consumption	≤2W
Access terminal	4-pin 5.08mm pitch plug-in terminal
Working environment
Working Temperature	-40°C ~ 85°C
Storage Temperature	-40°C ~ 85°C
Working Humidity	5%~95 % (no condensation)
MTBF	>100,000 hours
Mechanical:
Dimension (WxDxH)	133mm×120mm×50mm
Casing	IP40 protection, Aluminum case
Installation	35mm DIN-Rail, Wall Mounting
Weight	0.75KG

Overview

The CAN-to-fiber converters support all the transmission speeds (transmission rates):0-1Mbps. The CAN optical fiber converter can convert the CAN bus signal into an optical signal and transmit it on the optical fiber, which has the effect of extending the communication distance of the CAN bus. At the same time, the use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage.

Application

Ordering Information

Model	Description
Industrial 1Ch CAN-to-fiber converters
LNK-FCAN01	Industrial 1Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM
LNK-FCAN01-20	Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM
LNK-FCAN01S-20	Industrial 1Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM
Industrial 2Ch CAN-to-fiber converters
LNK-FCAN02	Industrial 2Ch CAN BUS Fiber Media Converter: Multimode, Dual Fiber, FC, 2KM
LNK-FCAN02-20	Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Dual Fiber, FC, 20KM
LNK-FCAN02S-20	Industrial 2Ch CAN BUS Fiber Media Converter: Single Mode, Single Fiber, FC, 20KM
Note: Default FC fiber connector, SC, ST optional*
