DIN-Rail 10/100/1000Base-TX to 1000Base-X Ethernet Media Converter

Name: DIN-Rail 10/100/1000Base-TX to 1000Base-X Ethernet Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-D3011
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-D3011

Document: E-link DIN-Rail Gigabit Med....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $39-270

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  Din-Rail Ethernet Media Converter, 10/100/1000Base-TX Ethernet Media Converter, 1000Base-X Ethernet Media Converter


Input Power:	AC100-240V/50-60HZ (Internal Power)	Operating Temperature::	0℃～+50℃
Weight:	0.5Kg	Mounting Options::	Wall-mount / DIN-Rail / LNK-R14 2U Rack
Dimensions (WxDxH)::	71x105 X27mm

Input Power:	AC100-240V/50-60HZ (Internal Power)
Operating Temperature::	0℃～+50℃
Weight:	0.5Kg
Mounting Options::	Wall-mount / DIN-Rail / LNK-R14 2U Rack
Dimensions (WxDxH)::	71x105 X27mm

Description

DIN-Rail 10/100/1000Base-TX to 1000Base-X Ethernet Media Converter

Product Advantages

· Convert 10/100/1000Base-TX to 1000Base-X

· Full/Half duplex, Auto-Negotiation

· Single mode or Multi-mode fiber operation

· Single or Dual-core fiber with SC connectors

· MDI/MDI-X Auto Crossover supported

· Plug-and-Play

· DIN-Rail mountable

· 0°C to 50°C (32°F to 122°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE802.3X Flow Control
Processing Type:	Store-and-Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate::	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Cabling:	10Base-T: Cat5 or above
	100Base-TX: Cat5 or above
	1000Base-TX: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	1x RJ45
Optical
Cabling:	50/125μm or 62.5/125μm (multimode)
Cabling:	9/125μm (Single mode)
Maximum Distance:	Multi-mode: 220m (62.5/125μm)/550m (50/125μm)
Maximum Distance:	Single mode: 20/40/60/80/120 Km
Wavelength:	850nm/1310nm/1550nm
Connector	SC
Environmental
Operating Temperature:	0°C to 50°C (32°F to 122°F)
Storage Temperature:	-40°C to 80°C (-40°F to 176°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	> 100,000 hrs
Electrical and Mechanical
Input Power:	5VDC (DC Socket)
Power Consumption:	2.5W Max. 0.5A@5VDC
LED Indicators
Power:	Power Status
10/100/1000TX(Per Port):	Link/Activity, Speed(100M, 1000M), FDX
1000FX (Per Port):	Link/Activity
Dimensions (WxDxH):	71x105 x27mm
Weight:	0.5Kg
Casing:	Metal Case
Mounting Options:	Wall-mount / DIN-Rail / LNK-R14 2U Rack
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Overview

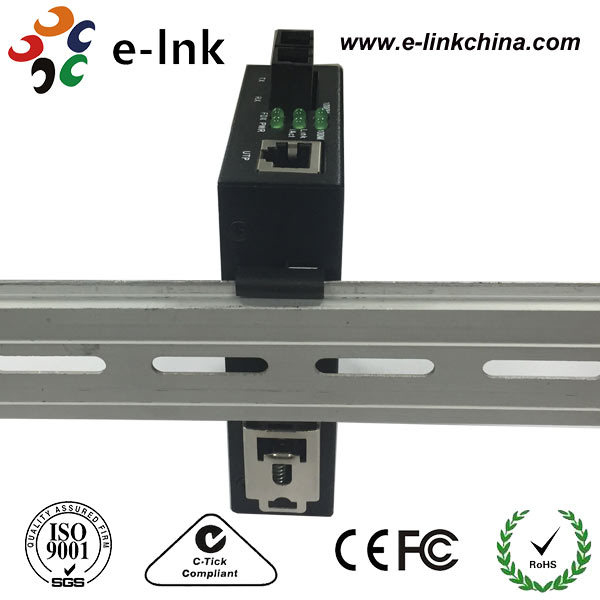

LNK-D3011 Series is a DIN-Rail media converter featuring a clip which allows for easy and safe attachment and removal from a DIN-rail. LNK-D3011 supports 10/100/1000M Ethernet port and 1000M SC port. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX.

Application

DIN-Rail 10/100/1000Base-TX to 1000Base-X Ethernet Media Converter

Ordering Information

Model	Description
LNK-D3011	10/100/1000Base-T to 1000Base-F, Mutli-mode, 550m, 850nm, SC, standalone, external power adaptor
LNK-D3011-20	10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-D3011S-20	10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
Mounting Options:	► DIN-Rail Mount Bracket; ► Rack-mountable on 2U rack LNK-R14 (Purchase Separately).
Power Options:	►1A/5VDC Power Adapter with DC Jack. ► Power Adaptor is included for all sales.
