12~48VDC Power Input Industrial Gigabit PoE+ Injector

Name: 12~48VDC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-INJ301

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Input Power:	12~48V DC Redundant Power	Cabling:	10/100/1000/2.5G Base-T Cat6A Or Above
PoE Port:	1 X 10/100Mbps RJ45	Keyword:	PoE Power Supply
Mounting Type:	DIN-Rail Mount	Poe Pinout:	1/2(+), 3/6(-)

Input Power:	12~48V DC Redundant Power
Cabling:	10/100/1000/2.5G Base-T Cat6A Or Above
PoE Port:	1 X 10/100Mbps RJ45
Keyword:	PoE Power Supply
Mounting Type:	DIN-Rail Mount
Poe Pinout:	1/2(+), 3/6(-)

Description

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Advantage

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the

IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the

distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support

10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with

IEEE 802.3 at.LNK-INJ301 provides an integrated power solution with a wide range voltage of

12~48VDC for high availability applications.

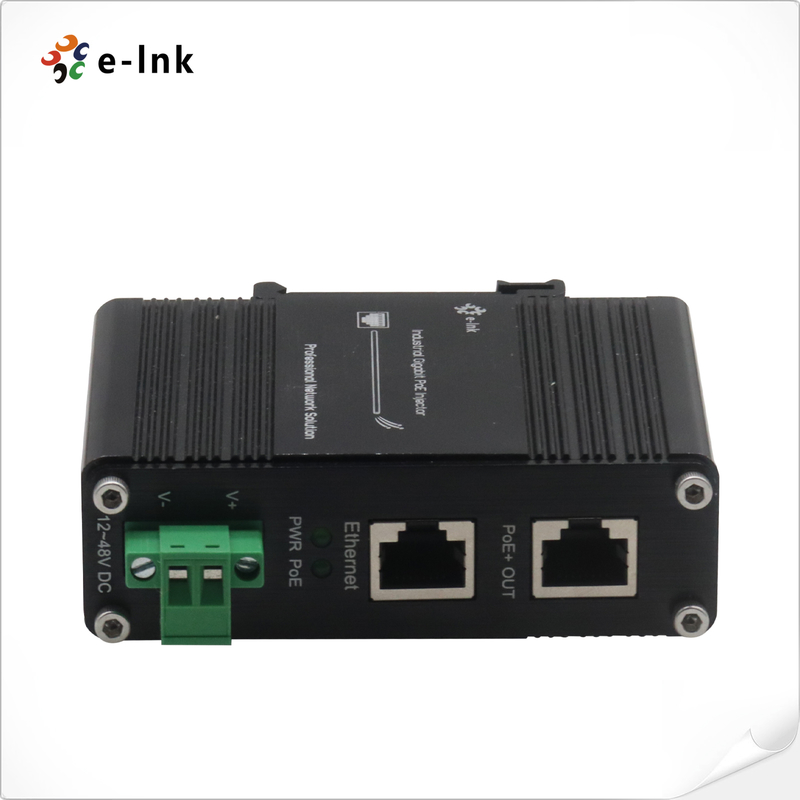

12~48VDC Power Input Industrial Gigabit PoE+ Injector 0

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Application

12~48VDC Power Input Industrial Gigabit PoE+ Injector 1

Ordering Information

Model	Description
LNK-INJ301	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
