80~320V DC Power Input Industrial Gigabit PoE+ Injector

Name: 80~320V DC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ832
Price: 57.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-INJ832

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: InjectorStandard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Industrial Gigabit PoE+ Injector	Input Power:	80~320VDC (Terminal Block)
Power Consumption:	36W Max.	Operating Humidity:	5% To 95% Non-condensing
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	MTBF:	>200,000hrs

Keywords:	Industrial Gigabit PoE+ Injector
Input Power:	80~320VDC (Terminal Block)
Power Consumption:	36W Max.
Operating Humidity:	5% To 95% Non-condensing
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
MTBF:	>200,000hrs

Description

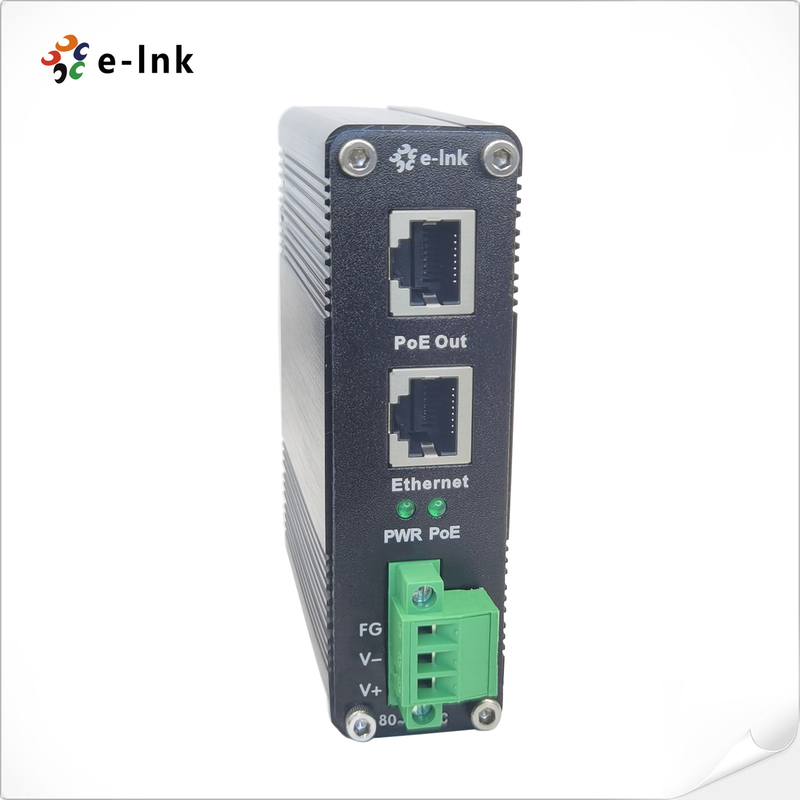

80~320V DC Power Input Industrial Gigabit PoE+ Injector

80~320V DC Power Input Industrial Gigabit PoE+ Injector Advantages

► 80~320VDC wide-range input voltage

► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

► IEEE 802.3af/at compliant, supports a full 30 watt output

► Provides slim size with IP40 metal mechanism

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

80~320V DC Power Input Industrial Gigabit PoE+ Injector Overview

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.

LNK-INJ832 provides an integrated power solution with a wide range voltage of 80~320VDC for high availability applications.

80~320V DC Power Input Industrial Gigabit PoE+ Injector Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45

PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

80~320V DC Power Input Industrial Gigabit PoE+ Injectorordering information

Model	Description
LNK-INJ832	80~320VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

80~320V DC Power Input Industrial Gigabit PoE+ Injector 0
