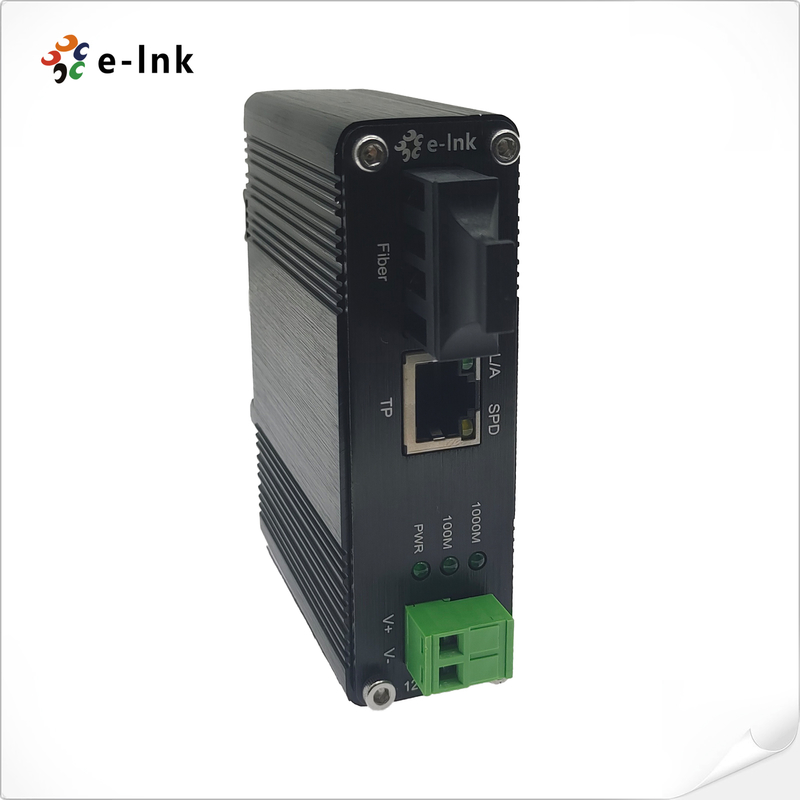

Mini Industrial 10/100/1000Base-T to 100/1000Base-X Media Converter

Name: Mini Industrial 10/100/1000Base-T to 100/1000Base-X Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC3012 Series
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE，ISO9001

Model Number: LNK-IMC3012 Series

Document: EEF2W3~1.DOC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $39-270

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Mini Industrial Media Converter, Mini 10/100/1000Base-T Media Converter, 100/1000Base-X Media Converter


Mounting Options:	DIN-Rail/Wall-mount	Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~48VDC, 2-pin Terminal Block	Power Consumption:	3W Max
Optical Port:	1 X SC 100Base-FX Or 1000Base-X Dual Mode (auto Detection)

Mounting Options:	DIN-Rail/Wall-mount
Dimensions (WxDxH):	95 X 70 X 30 Mm
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~48VDC, 2-pin Terminal Block
Power Consumption:	3W Max
Optical Port:	1 X SC 100Base-FX Or 1000Base-X Dual Mode (auto Detection)

Description

Mini Industrial 10/100/1000Base-T to 100/1000Base-X Media Converter

Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011 Series are easy to mount on a DIN rail or in distribution boxes. This media converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.


Mini Industrial 10/100/1000Base-T to 100/1000Base-X Media Converter

Application

Mini Industrial 10/100/1000Base-T to 100/1000Base-X Media Converter

Ordering Information

Model	Description
LNK-IMC3012	Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-SX, Multi-mode, 550m, 850nm, SC
LNK-IMC3012-20	Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-LX, Single-mode, 20km, 1310nm, SC
LNK-IMC3012-S20	Mini Industrial Media Converter, 10/100/1000Base-T to 100/1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
