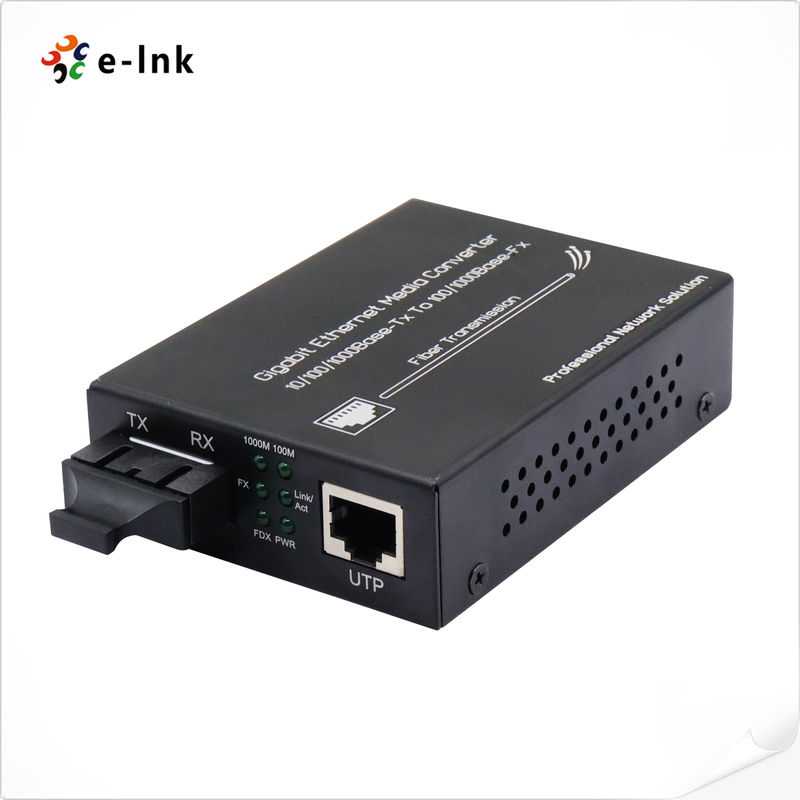

10/100/1000M Gigabit Ethernet Media Converter

Name: 10/100/1000M Gigabit Ethernet Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-3011 Series
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: Iso9001, CE, ROHS, FCC

Model Number: LNK-3011 Series

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiate

Packaging Details: Fiber Media Converter Standard Carton Packaging

Delivery Time: 1-3 working days

Payment Terms: T/T, Western Union, MoneyGram, PayPal

Supply Ability: 10000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Wavelength:	850nm/1310nm/1550nm	Conversion Means:	Media Conversion
Power Supply:	DC 5V / 1A	Power Consumption:	5W
Operating Temperature:	-10~55ºC	Dimensions (W X D X H):	71 X 94 X 26 Mm

Wavelength:	850nm/1310nm/1550nm
Conversion Means:	Media Conversion
Power Supply:	DC 5V / 1A
Power Consumption:	5W
Operating Temperature:	-10~55ºC
Dimensions (W X D X H):	71 X 94 X 26 Mm

Description

10/100/1000M Gigabit Ethernet Media Converter

Model: LNK-3011 Series

Overview

LNK-3011 Series 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology

to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.

Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-

SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals

of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to up to 120km

via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode

single fiber.

Features

► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► 10/100/1000M media converter with SFP slot is available

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)
Conversion means	Media conversion
BER	<10^-9
MTBF	100,000 hours
Power supply	DC 5V / 1A
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm

Application

10/100/1000M Gigabit Ethernet Media Converter 0

Order Information

Item	Description
Item	Description
LNK-3011	10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor
LNK-3011S-20	10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-S3011-20	10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
