12~48V DC Power Input Industrial 5G 60W PoE Injector

12~48V DC Power Input Industrial 5G 60W PoE Injector

12~48V DC Power Input Industrial 5G 60W PoE Injector Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 30 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

12~48V DC Power Input Industrial 5G 60W PoE Injector Overview

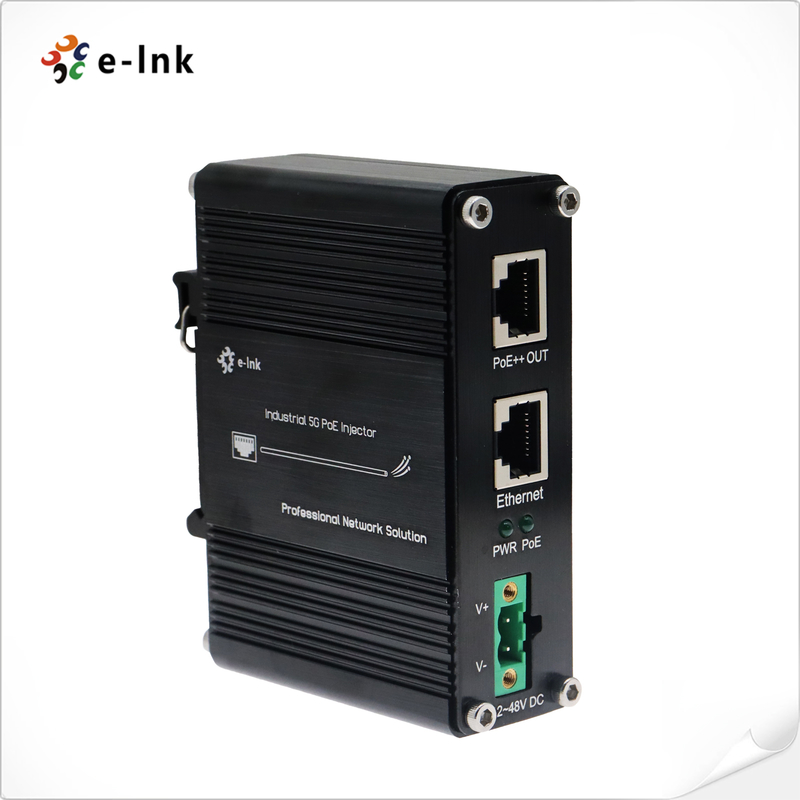

The LNK-INJ501-60 product is a Hardened 5G High Power 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ501-60 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

12~48V DC Power Input Industrial 5G 60W PoE Injector Technical Indexes
