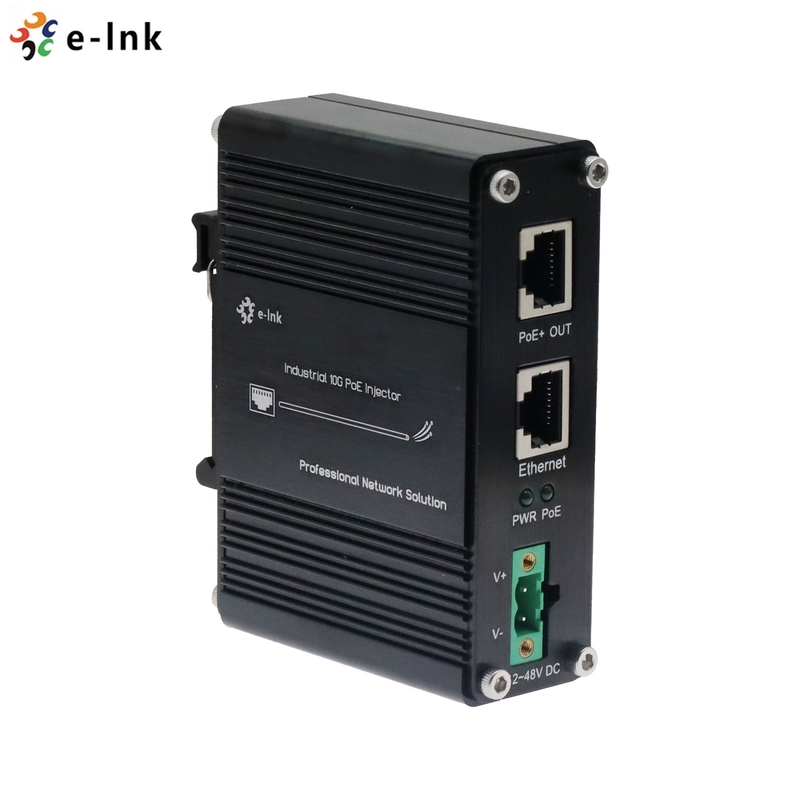

12~48V DC Power Input Industrial 10G PoE+ Injector

Name: 12~48V DC Power Input Industrial 10G PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ601-30
Price: 19.9 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-INJ601-30

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $19.9

Packaging Details: Injector Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      48V Industrial PoE+ Injector, 12~48V Industrial PoE+ Injector


Keywords:	Industrial PoE Injector	Max. Power Per Port:	30W Max Per Port (Alternative B Mode)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	MTBF:	>200,000hrs
Power Consumption::	36W Max.	Dimensions (WxDxH):	95 X 70 X 30 Mm

Keywords:	Industrial PoE Injector
Max. Power Per Port:	30W Max Per Port (Alternative B Mode)
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
MTBF:	>200,000hrs
Power Consumption::	36W Max.
Dimensions (WxDxH):	95 X 70 X 30 Mm

Description

12~48V DC Power Input Industrial 10G PoE+ Injector

12~48V DC Power Input Industrial 10G PoE+ Injector Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G/10G Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 30 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

12~48V DC Power Input Industrial 10G PoE+ Injector Overview

The LNK-INJ601-30 product is a Hardened 10G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000/2.5G/5G/10G Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ601-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

12~48V DC Power Input Industrial 10G PoE+ Injector Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	14,880,000pps (10Gbps)
Cabling:	10/100/1000/2.5G/5G/10G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45

PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

12~48V DC Power Input Industrial 10G PoE+ Injector ordering information

Model	Description
LNK-INJ601-30	12~48VDC Power Input Industrial 10G PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

12~48V DC Power Input Industrial 10G PoE+ Injector
