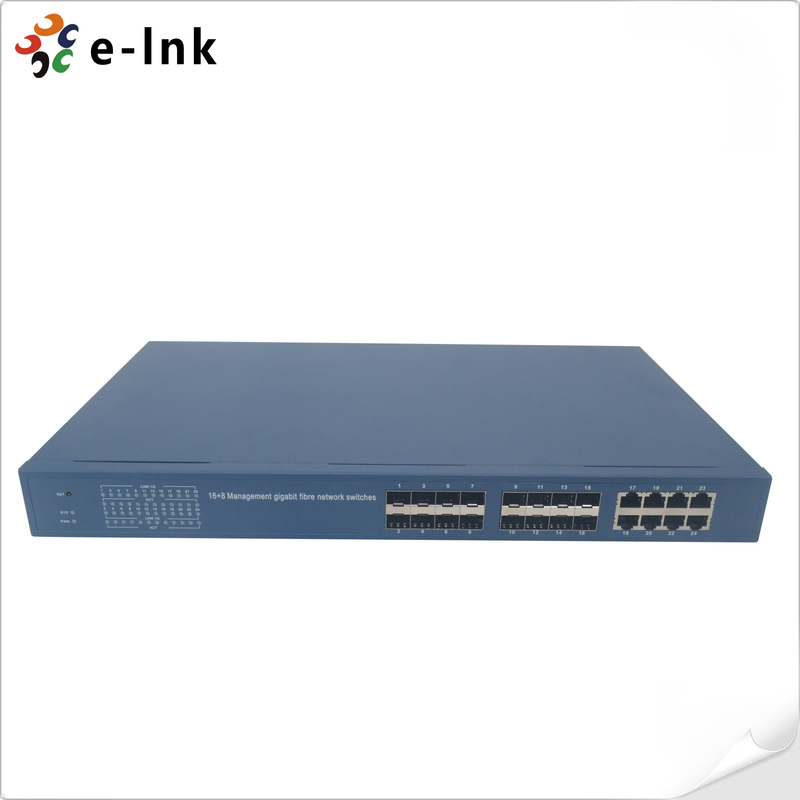

8G + 16SFP Management Gigabit Fiber Switch

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-FS168

Document: E-link LNK-FS168 Series Fib....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:
Operating Temperature:
0℃~40℃
Dimension:
440x230x44mm(1U19-inch Standard Chassis)
Power:
Input :90-264VAC ,50-60HZ; Output: 5V/12A
MAC Address Table:
8K
Operating Temperature:
0℃~40℃
Dimension:
440x230x44mm(1U19-inch Standard Chassis)
Power:
Input :90-264VAC ,50-60HZ; Output: 5V/12A
MAC Address Table:
8K
Description
8G + 16SFP Management Gigabit Fiber Switch

8G + 16SFP Management Gigabit Fiber Switch


Product Advantages

► Support for 802.1x authentication, and to provide users with access to authentication

► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure

► Support the function of port mirroring, port gathering, port speed limit

► Support the port-based VLAN and IEEE802.1Q based on VLAN

► Storm suppression: can be set with the Broadcast, multicast, DLF traffic

► Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol)



Technical Indexes


Product Type

16+8 Management gigabit fiber network switches

Support agreement

IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum frame length

9216B

Ports

16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports

Network Media

1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.

1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.

10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S

100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S

1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S

VLAN Address Table

4K

MAC address table

8K

Cache

32Mbits

Backplane bandwidth

52Gbit

Filtering and forwarding rate

10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Dimensions

440x230x44mm(1U19-inch standard chassis)

Use of the environment

Operating Temperature: 040;

Humidity 10% ~ 90% non-condensing

Storage temperature:  -20~70;
Storage Humidity 5% ~ 90% non-condensing

Power

Input :90-264VAC ,50-60HZ; output: 5V/12A

Power consumption

Power consumption: 60W

Overview

16+8 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch, provides 810/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports wire-speed switching of the second layer.


Orderinng Information


8G + 16SFP Management Gigabi</span></span><strong style=Item

Description

LNK-FS168

8G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port
